24VDC Pneumatic Double Solenoid Valve 4V220-08 Good Corrosion Resistance
24VDC Pneumatic Double Solenoid Valve 4V220-08 Good Corrosion Resistance
24VDC Pneumatic Double Solenoid Valve 4V220-08 Good Corrosion Resistance
24VDC Pneumatic Double Solenoid Valve 4V220-08 Good Corrosion Resistance
Specifications
Brand Name :
DOPOW
Model Number :
4V220-08
Certification :
CE ISO9001
Place of Origin :
Yueqing China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100000PCS/MO
Delivery Time :
5 working days after receiving the customers' payment
Packaging Details :
Wooden box，Standard carton packaging
Product Name :
Pneumatic Double Solenoid Valve
Valve Type :
5/2 Way, Single Solenoid
Working pressure :
0.15-0.8MPa
Port Size :
3/8
Working Temperature :
0℃~60℃
Power :
Pneumatic
Action :
Direct Acting
Material :
Aluminum
Description

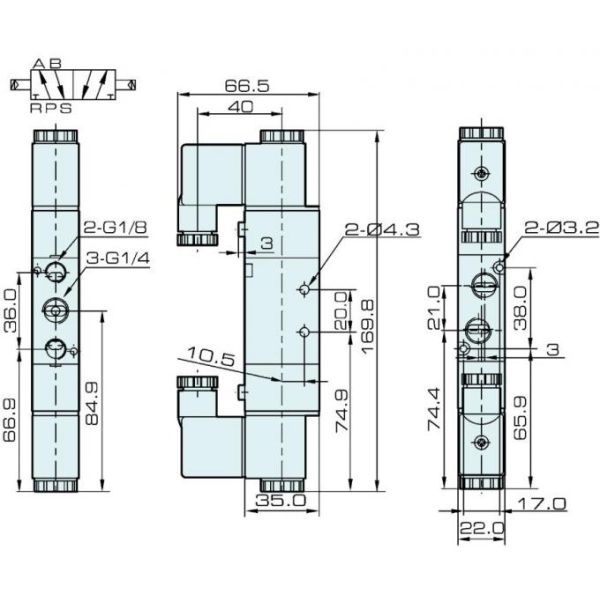

24VDC Pneumatic Double Solenoid Valve 4V220-08

1. The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation;
2. High quality sealing ring. High quality seals for durability and longer life;
3. High precision valve stem. Imported high-quality lubricants to ensure lubrication and reduce friction during exercise;
4. High frequency sub-head. Made of high-quality conductor material with 5 times in 1 second high intensity and high frequency response for smoother operation;
5. The coil is easy to disassemble. Removable core nut, coil can be replaced at any time;
6. High quality electronic components. The copper coil can work hard for a long time, the wiring operation is simple;
7. Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

24VDC Pneumatic Double Solenoid Valve 4V220-08 Good Corrosion Resistance

Model 4V210-06 4V220-06 4V230C-06 4V230E-06 4V230P-06 4V210-08 4V220-08 4V230C-08 4V230E-08 4V230P-08
4A210-06 4A220-06 4A230C-06 4A230E-06 4A230P-06 4A210-08 4A220-08 4A230C-08 4A230E-08 4A230P-08
Valve type 5/2 way 5/3 way 5/2 way 5/3 way
Effectiive area 14 mm2(CV=0.78) 12 mm2(CV=0.67) 16 mm2(CV=0.89) 12 mm2(CV=0.67)
Model 3V210-06 3V220-06 3A210-06 3A220-06 3V210-08 3V220-08 3A210-08 3A220-08
Valve type 3/2 way
Effective area 14 mm2(CV=0.78) 16 mm2(CV=0.89)
Port size Inlet , outlet,exhaust port=1/8" Inlet, outlet=1/4", Exhaust port=1/8"
Working medium 40 micron filtered air
Operation Internal piloted
Working pressure 0.15-0.8 Mpa
Max. pressure 1.2 Mpa
Temperature 5-50 degrees centigrade
Voltage tolerance Plus or minus 10%
Power consumption AC:5.5 VA, DC:4.8W
Connector protection F Class , IP65
Wiring/Connector Cable/Lead wire or DIN connector
Frequency 5 cycles/ sec
Response time 0.05 sec
