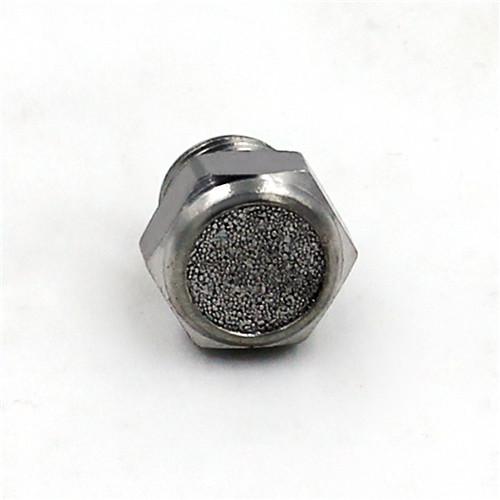

G1/4′′ SS316 Stainless Steel Breather Vent , Pneumatic Muffler Silencer
G1/4′′ SS316 Stainless Steel Breather Vent , Pneumatic Muffler Silencer
G1/4′′ SS316 Stainless Steel Breather Vent , Pneumatic Muffler Silencer
G1/4′′ SS316 Stainless Steel Breather Vent , Pneumatic Muffler Silencer
Specifications
Brand Name :
DOPOW
Model Number :
PU
Certification :
CE
Place of Origin :
Yueqing China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100000Pcs/MO
Delivery Time :
5 working days after receiving the customers' payment
Packaging Details :
Wooden box, Standard carton packaging
Name :
Pneumatic Air Muffler
Actuation Air Pressure :
Default
Cut Typ :
Default
Nozzle diameter :
1.5mm
Connector Type :
Nptf
Item Diameter :
2.01 inches
Color :
White Black Grey
Backing Type :
Default
Vacuum thread diameter :
Rp1/4
Inlet thread diameter :
Rp1/4
Outlet thread diameter :
Rp1/4
Flow medium :
Air
Description

Air Silencer G1/4′′ SS316 Stainless Steel Wire Mesh Muffler Breather Silencer

Features
1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.
2: to reduce noise and to remove dust and water.
3. Pressure Range: 0-10 bar; Max. Pressure: 12 bar.
4. Temperature Range: -10~70 °C.
5. Noise Elimination Effect: 20-25 db.
6. Filtration Rating: 5-100μm; regular rating is 40μm.
7. NPT, G & BSPT thread are available; regular thread is G thread.
8. Material: Brass, SS304, SS316, PE.


Material: stainless steel

Effect: muffler with an exhaust port connected, for reducing noise emissions

Medium: compressed air.

Use pressure: 0.1-0.8Mpa,

Operating temperature: -30 ~ + 350 C


Muffler Features:
1. Silencing effect is very advantageous.

2. Exhaust resistance is small, the action has no effect on the machine.

3. Dimensions compact, light weight, easy to install.

4. Long life, corrosion-resistant stainless steel muffler filter, water, oil.

5. Oil blockage can also wash before use.

G1/4′′ SS316 Stainless Steel Breather Vent , Pneumatic Muffler Silencer

G1/4′′ SS316 Stainless Steel Breather Vent , Pneumatic Muffler Silencer
