Thermoplastic Polyurethane Coil Hose Pneumatic Air Tube 8mm With Fitting Both Ends
Thermoplastic Polyurethane Coil Hose Pneumatic Air Tube 8mm With Fitting Both Ends
Specifications
Brand Name :
DOPOW
Model Number :
CL
Certification :
CE
Place of Origin :
Yueqing China
MOQ :
1 Roll
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100000roll/MO
Delivery Time :
5 working days after receiving the customers' payment
Packaging Details :
Wooden box, Standard carton packaging
Place of Origin: :
Polyurethane Coiled Air Hose
Size :
6,8,10,12mm
Length :
3 meters, 6 meters, 9m and so on
Color :
Blue, Black
Material :
PU, Polythylene
Fluid temperature :
-5C~50C
Fluid :
Air, lubricating
Thickness :
1mm
Standard :
ISO
MOQ :
2000 Meters
Description

Thermoplastic Polyurethane Coil Pneumatic Air Tube 8mm With Fitting Both Ends,Sprial Air Hose

TPU Coil tube Outer Diameter 6mm,8mm,10mm,12mm e.g CLW8x5-6M-BU With fitting both ends

Thermoplastic Polyurethane polyester and polyether material

Quick Detail:

* TPU series air and water coil tube

* Thermoplastic Polyurethane polyester and polyether material

* hardness 95A,98A

* outer Dia. Metric size 6mm, 8mm, 10mm,12mm

* conform to ROHS environment protection requirement

* high flexibility,rebound automatically after elongating

* superior anti-vibration,anti-corrosion,anti-weather,anti-Chemical and anti-oil

* outstanding anti-weater,anti-curve and anti-fatigue

* wide applicable range of tempeature

* various tube colours for option make it easier to distinguish pipes one another

* anti-UV class reach up to 3.5,maintain colour even in outdoor application

* low absorb rate,low physical performance deterioration and low changeable rate of measurement

* non-toxic,tastless

* polyether with property of good hdrolyzing resistance, fungus resistance

Applications:

TPU air coil tube and water tube used widely in industrial area like automotive,textile,air compressor,painting,welding,hardware tools, agriculture, Food,medicine,civil engineering,farming industrial, landscape irrigation, electronic industrial etc

Specifications:

ORDERING CODE
CL W 8x5 6M BU
Type Accessories O.Dx I.D Metric Size Length Colours
PU:TPU Coil Tube

W: Both Ends

With Fittings

 6x4 6M:6Meters BU:BLUE
8x5 9M:9Meters B:BLACK

Blank:Both End

Without Fittings

 10x6.5 12M:12Meters R:RED
12x8 15M:15Meters Y:YELLOW
T:TRANSPARENT

NOTE: LENGTH METERS CAN BE MADE ACCORDING TO REQUIREMENT,

IF WITH FITTING BOTH ENDS,THE LENGTH SHOULD NOT LESS THAN 3 METERS

SPECIFICATION

1,Material: Thermoplastic Polyurethane

2,Working Fluids:Air,water,oil

3,Working Pressure:-0.2bar~10bar

4,Working Temperature:-20~80℃

Thermoplastic Polyurethane Coil Hose Pneumatic Air Tube 8mm With Fitting Both Ends

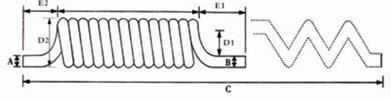

MODEL NO 6M 9M 12M 15M E1 E2
D1 D2 D1 D2
CL6×4 30 42 40 52 100
CL8×5 40 56 50 66 100
CL10×6.5 50 70 60 80 100
CL12×8 60 84 60 84 100

PU spiral Tube,PU Coil tube,Pneumatic Air hose
