Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316
Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316
Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316
Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316
Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316
Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316
Specifications
Brand Name :
Mkfale
Model Number :
SNV
Certification :
ISO9001
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs
Delivery Time :
5 - 30 Work Days
Packaging Details :
Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Type :
Needle Valves
Dimensions :
1/4 " 3/8 " 1/2 " 3/4 " 1 "
Connection :
Tube , Thread , Butt Welding , Sorket Welding
Body Material :
Stainless Steel 316
Option :
Bleed , High Temperature 450 ℃
Pressure :
3000PSI,6000PSI
Description

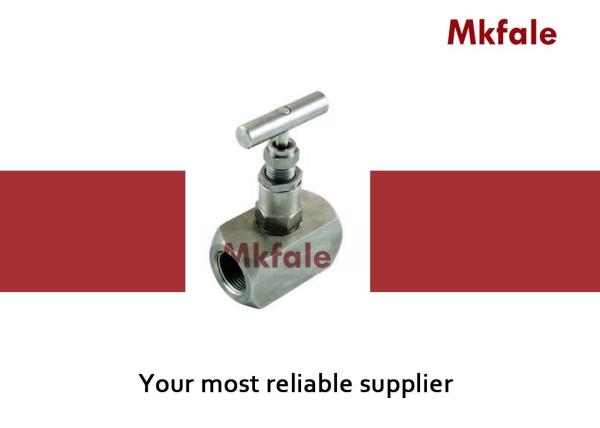

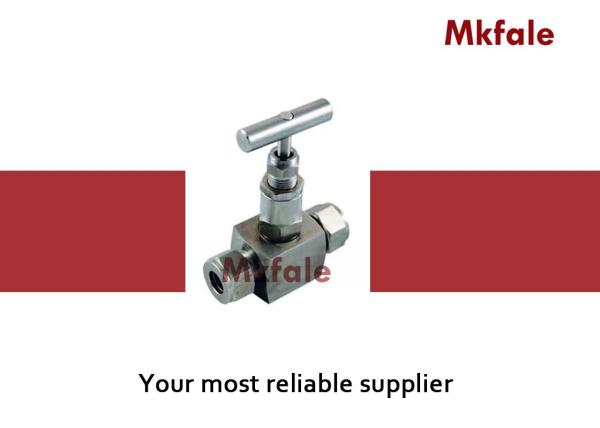

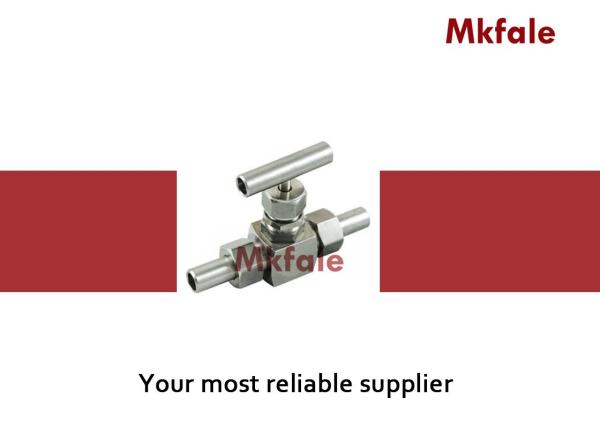

Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316

Features

Working pressure up to 10000 psi( 689bar ) .

Temperature rating from - 65 ℉ to 450 ℉ ( - 54 ℃ to 232 ℃ ) with standard PTFE sealing, and up to 1200 ℉ ( 648 ℃ ) with optional Grafoil sealing.

Body material available in 316SS , Carbon Steel and Alloy 400 ( Monel ) .

100 % Factory tested

Material of Construction

Description Material
Handle SS304
Set Screw SS304
Lock Nut SS304
Packing Bolt SS316
Packing Gland SS316
Packing Washer SS316
Packing PTFE
Bonnet SS316
Stem SS316
Vee Tip 454
Ball Tip 4545
Stop Pin 1120

Alternative Stems

Needle Valves are available with a choice of stem - tip options to allow greater flexibility

Regulating : Used where some degree of flow control is required .

V - Stem : A standard stem tip used for general - purpose liquids and gases .

Non - Rotating : Typically used in high - cycle applications to extend valve life . It is designed to prevent galling between the seat and stem .

Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316Needle Valves High Pressure Stainless Steel Valve 3000PSI 6000PSI Female Thread SS316
