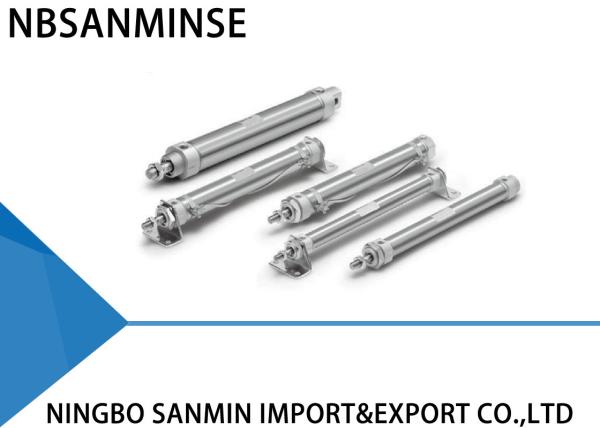

CM2 Standard Type Pneumatic Air Cylinder Single Rod Double Acting Pneumatic Cylinder
CM2 Standard Type Pneumatic Air Cylinder Single Rod Double Acting Pneumatic Cylinder
Specifications
Brand Name :
NBSANMINSE
Model Number :
CM2
Certification :
ISO9001
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Type :
Pneumatic
Action :
Double Acting , Single Rod
Fluid :
Air
Max Pressure :
1.0 MPa
Min Pressure :
0.05 MPa
Cushion :
Rubber bumper , Air cushion
Description

CM2 Standard Type Double Acting Single Rod Air Pneumatic Cylinder

Specification

Bore Size ( mm ) 20 25 32 40
Type Pneumatic
Action Double Acting , Single rod
Fluid Air
Proof Pressure 1.5MPa
Maximum operating pressure 1.0MPa
Minimum operating pressure 0.05MPa
Ambient and fluid temperature

Without auto switch : - 10 ℃ to 70 ℃ (No Freezing)

With auto switch : - 10 ℃ to 60 ℃ (No Freezing)
Lubrication Not required ( Non - lube)
Stroke length tolerance

+1.4mm

0mm
Piston speed 50 to 750 mm/s
Cushion Rubber bumper , Air Cushion
Allowable kinetic energy Rubber bumper Male thread 0.27J 0.4J 0.65J 1.2J
Female thread 0.11J 0.18J 0.29 0.52
Air cushion ( Effective cushion length (mm)) Male thread

0.54J

(11.0)

0.78J

(11.0)

1.27J

(11.0)

2.35J

(11.8)
Female Thread 0.11J 0.18J 0.29J 0.52J

Standard Strokes

Bore Size

(mm)

 Standard Stroke ( mm ) Note 1 ) Max manufacturable stroke( mm)
20 25, 50 , 75 , 100 , 125 , 150 , 200 , 250 , 300 1000
25 1500
32 2000
40

Why choose us

1: Customize according to your special request .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: Various style for each products and completely series pneumatic products .

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .

Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
