4H Series Pneumatic Solenoid Valve Two Position / Three Position Five Way Hand Pull
4H Series Pneumatic Solenoid Valve Two Position / Three Position Five Way Hand Pull
Specifications
Brand Name :
NBSANMINSE
Model Number :
4H
Certification :
ISO9001
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Series :
Two / Three Position Five Way
Code :
200 /300 /400
Places :
Single - Head Dooble / Three - Psition
Joint Pipe Bore :
1 / 8 , 1 / 4 , 3 / 8 , 1 / 2
Motion Pattern :
Direct Drive Type
Working Pressure :
0 ~ 0.8 MPa

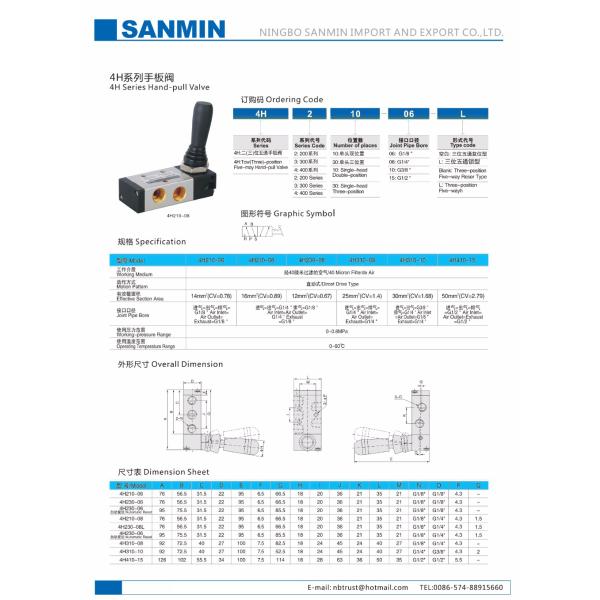

Description

4H Series Hand Pull Valve Two Position / Three Position Five May Hand Pull Valve Pneumatic Solenoid Valve Sanmin


Series : 4H :
Two ( Three ) - Position Five - may Hand - Pull Valve
Series Code :
2 : 200 Series , 3 : 300 Series , 4 : 400 Series
Number of Places :
10 : Single - Head Double - Position , 30 : Single - head Three - Position
Joint Pipe Bore :
06 : G1/8" , 08 : G1/4" , 10 : G3/8" , 15 : G1/2"
Blank : Three - Position Five - Way Reser Type
Specification
Model 4H210-06 4210-08 4H230-08 4H310-08 4310-10 4H410-15
Working Medium 40 Micron Filtered Air
Motion Pattern Direct Drive Type
Effective Section Area 14mm⊃2;( CV=0.78) 16mm⊃2; (CV=0.89) 12mm⊃2;(CV=0.67) 25mm⊃2;(CV=1.4) 30mm⊃2;(CV=1.68) 50mm⊃2;(CV=2.79)
Joint Pipe Bore Air Inlet = Air Outlet = Exhaust=G1/8” Air Inlet = Air Outlet = G1/4” Exhaust = G1/8” Air Inlet = Air Outlet = Exhaust = G1/4” Air Inlet = Air Outlet = G1/8” Exhaust = G1/4” Air Inlet = Air Outlet = Exhaust = G1/2”
Working – Pressure Range 0 ~ 0.8 MPa
Operating Temperature Range 0~60℃




FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .

Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection

Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.

Why choose us
1: Various style for each products and completely series pneumatic products .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: Large stock for fast shipping .
