Specifications
Brand Name :
NBSANMINSE
Model Number :
KA
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Certification :
ISO
Standard or Nonstandard :
Standard
Pressure :
0.2 - 0.8 MPa
Power :
Pneumatic
Fluid :
Air
Temperature :
-5 ~ 60 C
Structure :
Check
Material :
Alloy
Port Size :
1/8 , 1/4 , 3/8 , 1/2 , 3/4 , 1 , 1-1/4 , 1-1/2 , 2
Temperature of Media :
Normal Temperature
Media :
Air
Description

NBSANMINSE KA Check Valve Pneumatic Air Valve 1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 One Direction Valve for Automation

Pneumatic item pressure range is 0-8bar(0.8Mpa)
Please don't work more than indicated pressure range.

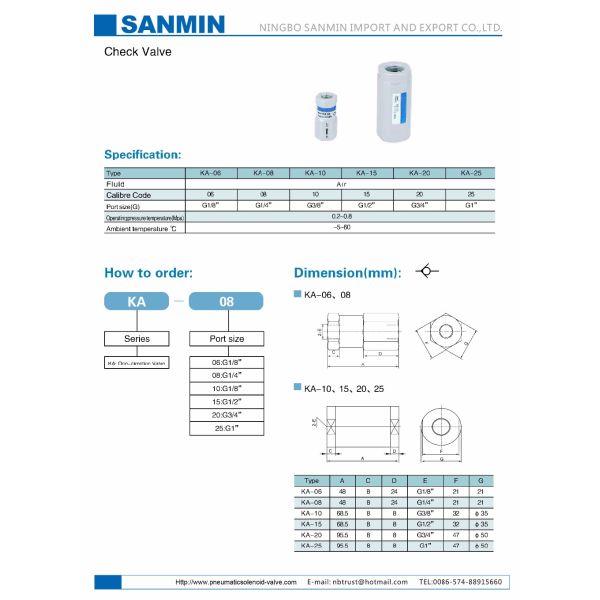

Specification
Type KA - 06 KA - 08 KA - 10 KA - 15 KA - 20 KA - 25
Fluid Air
Calibre Code 06 08 10 15 20 25
Port Size ( G ) G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Operating Pressure Temperature ( MPa ) 0.2 ~ 0.8
Ambient Temperature ℃ - 5 ~ 60

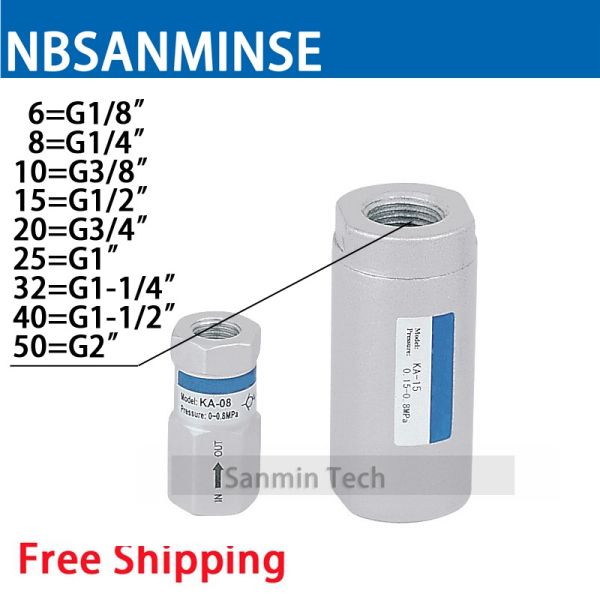

06=1/8

08=1/4

10=3/8

15=1/2

20=3/4

25=1

32=1-1/4

40=1-1/2

50=2

NBSANMINSE KA Check Valve Pneumatic Air Valve 1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 One Direction Valve For Automation

NBSANMINSE KA Check Valve Pneumatic Air Valve 1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 One Direction Valve For Automation

NBSANMINSE KA Check Valve Pneumatic Air Valve 1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 One Direction Valve For Automation

NBSANMINSE KA Check Valve Pneumatic Air Valve 1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 One Direction Valve For Automation

NBSANMINSE KA Check Valve Pneumatic Air Valve 1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 One Direction Valve For Automation
