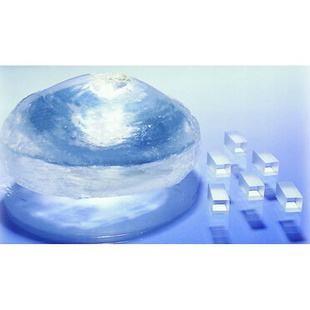

Electro - Optic Hygroscopic Crystals For Pockels Cells BBO Frequency Doubling Argon Ion / Copper Vapor Laser Radiation
Electro - Optic Hygroscopic Crystals For Pockels Cells BBO Frequency Doubling Argon Ion / Copper Vapor Laser Radiation
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
Jinan,China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30 days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Flatness :
λ/8 at 633nm
Clear aperture :
90% of full aperture
Aperture tolerance :
±0.1mm
Angle tolerance :
≤± 0.25°
Coatings :
C1---AR@1342(<0.2%)&671(R<0.5%)nm C2---AR@1319(<0.2%)&659.5(R<0.5%)nm C3---AR@1064(<0.2%)&532(R<0.5%)nm C4---AR@946(R<0.2%)&473(R<0.5%)nm C5---AR@914(R<0.2%)&457(R<0.5%)nm C6---AR@800(R<0.2%)&400(R<0.5%)nm
Damage Threshold :
500MW/cm² (1064nm, 10ns, 10Hz)
Description

Electro-optic Crystal For Pockels Cells BBO Frequency Doubling Of Argon Ion and Copper Vapor Laser Radiation

BBO NON-LINEAR CRYSTALS

Beta-barium borate (BBO) has the following exceptional properties that make it a very important nonlinear crystal:

  • Small walk-off angle
  • high damage threshold
  • wide acceptance angle
  • High optical homogeneity 473nm

As a result of its excellent properties BBO has a number of advantages for different applications:

Harmonic generations (up to fifth) of Nd doped lasers

Frequency doubling and tripling of ultrashort pulse Ti:Sapphire and Dye lasers

Optical parametric oscillators [OPO) at both type 1 (ooe) and type 2 (eoe) phase-matching

Frequency doubling of argon ion and Copper vapor laser radiation

Ultrashot pulse duration measurements by autocorrelation

SPECIFICATIONS

Flatness λ/8 at 633nm
Parallelism ≤20 arcsec
Surface quality 20-10 scratch & dig (MIL-PRF-13830B)
Perpendicularity ≤5 arcmin
Angle tolerance ≤± 0.25°
Dimension tolerance ±0.1mm
Aperture tolerance ±0.1mm
Clear aperture 90% of full aperture
Chamfer ≤0.2 mmx45°
Chip ≤0.1mm

CRYSTRONG OFFERS

  • Crystals length up to 50 mm and aperture up to 40*40 mm
  • Thin crystals down to 10 um . thickness
  • AR BBAR,P-coating
  • Different mounting and re-polishing services
  • Accurate quality control
  • Attractive prices and fast delivery
