An excellent crystal for electro optical applications RTP Nonlinear optical crystals for OPA and OPO.
An excellent crystal for electro optical applications RTP Nonlinear optical crystals for OPA and OPO.
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
Jinan,China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30 days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Flatness :
λ/8 at 633nm
Clear aperture :
90% of full aperture
Aperture tolerance :
±0.1mm
Angle tolerance :
≤± 0.25°
Description

Products Description:

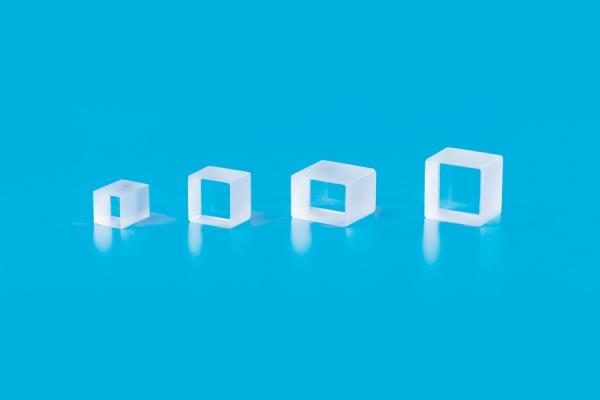

RTP NON-LINEAR CRYSTALS

Rubidium Titanyl Phosphate RbTiOPO4 (RTP) is a new NLO crystal for the SHG,OPO and Electro-optic application.

RTP single crystals are recently grown by Top Seeded Solution Growth (TSSG) from self-flux and treated electro-thermally.

ADVANTAGES

  • An excellent crystal for Electro Optical applications at high repetition rate
  • No Piezoelectric Ringing
  • Low Insertion Loss
  • Thermal Compensating Design
  • High Damage Threshold
  • High Extinction and Contrast Ratio
  • Non-hygroscopic

APPLICATIONS

  • SHG Nd: lasers at 1064nm
  • Optical Parametric Amplifiers (OPA] and Oscillators (OPO) application
  • E-O application

SPECIFICATIONS

Flatness λ/8 at 633nm
Parallelism ≤20 arcsec
Surface quality 20-10 scratch & dig (MIL-PRF-13830B)
Perpendicularity ≤5 arcmin
Angle tolerance ≤± 0.25°
Dimension tolerance ±0.1mm
Aperture tolerance ±0.1mm
Clear aperture 90% of full aperture
Chamfer ≤0.2 mmx45°
Chip ≤0.1mm
Quality Warranty Period One year under proper use
