High Damage Threshold Optical Switch , 1064nm AR Coatings Kdp Pockels Cell
High Damage Threshold Optical Switch , 1064nm AR Coatings Kdp Pockels Cell
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
Jinan,China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Flatness :
λ/8 at 633nm
Angle tolerance :
≤± 0.25°
Aperture :
6mm
Clear aperture :
90% of full aperture
Wavelength :
AR Coaings At 1064nm ( R<0.2% )
Transsmission :
>98.5% At 1064nm
Description

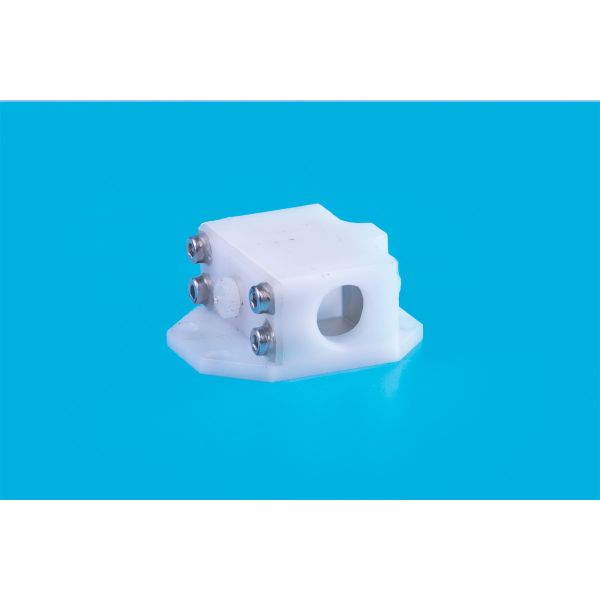

China Crystrong LiNbO3 Pockel Cell Q Switch With High Damage Threshold

Products Description:

MgO doped lithium niobate ( LiNbO3 ) crystal electro-optical Q-Switch which is used in Nd∶YAG laser range finder and can work at -50℃ ~ +50℃. The Li/Nb ratio of this crystal is 49.02/50.98 which is determined by means of ultraviolet absorption edge position, the IR vibrational spectrum, lattice parameters and Curie temperature.It is believed the Li/Nb ratio is the most important cause of the Q-switched LiNbO 3 crystal temperature stability. Besides, we also offer LiNbO3 Crystal wafer and MgO:LiNbO3 Crystal wafer, e.g. X-cut, Y-cut, Z-cut, 127.86° Y-cut, 135°Y-cut, 64°Y-cut, and so on. We aslo produce other kind of Laser Component and high quality Optical Element. Our customers include the optical industry, research groups at universities and other scientific institutes around the world.

Advantages:

  • Large effective nonlinear optical coefficient
  • Large acceptance angle, smaller walk-off angle
  • Wide temperature and spectral bandwidth
  • Higher photoelectric coefficient and low dielectric constant
  • Large resistance value
  • No absorbing water, stable chemical properties and mechanical properties
