Impact Resistance Optical Grade Glass Thermal Fluctuations Irradiation ZnSe Infrared Applications
Impact Resistance Optical Grade Glass Thermal Fluctuations Irradiation ZnSe Infrared Applications
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
Jinan,China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30 days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Transmission Band :
0.6-20um
Refractive Index :
2.4015 at 10.6um
Thermal Conductivity :
0.18W/cm/°C
Specific Heat :
0.356J/g/°C
Diameter :
+0.0/-0.10mm
Length :
+/-0.2mm
Description

Impact Resistance And Thermal Fluctuations And Irradiation ZnSe For Infrared Applications

Magnesium fluoride arystals are used in optical system, it through theband of0.11 mu m - 8.5 microns, Irradiation will not lead to the production of color heart, it has good mechanical properties, can withstand the heat and mechanical shock. Has a weak birefringence properties.

Magnesium fluoride is an application of a wide range of crystal, has the following features:

  • in the vacuum ultraviolet to infrared band (0.11~ 8.5 microns) has a high transmittance.
  • impact resistance and thermal fluctuations and irradiation.
  • good chemical stability.
  • can be used in optical lens, this Angle sheets, window edges and relatedoptical system.
  • the quartet birefringent crystal performance, available optical communications.

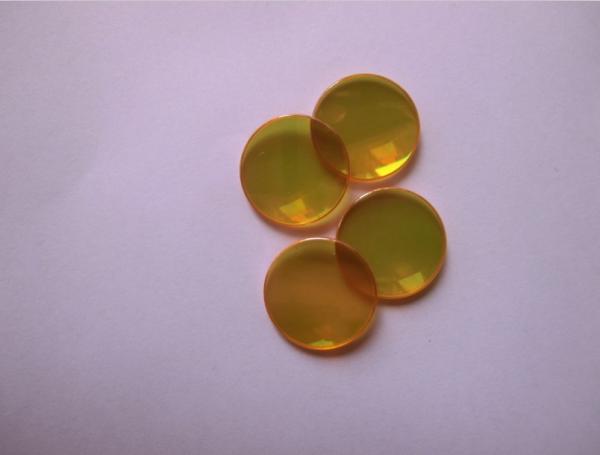

ZnSe

Introduction:

Zinc Selenide is the most popular material for infrared applications. It can transmit from 0.6um to 20 um. With its low absorption at IR wavelengths and visible transmission ZnSe based components including windows, output couplers, Prisms and lenses are widely used especially for high power IR laser.

Main Application:

material processing, astronomy, night and IR vision systems etc.

Main Properties:

Growing Method

Chemical Vapor Deposition(CVD)
Melting Point 1525℃
Transmission Band 0.6-20um
Bulk Absorption Coefficient 5X10-4cm-1 @10.6um
Density 5.268g/cm3
Refractive Index 2.4015 at 10.6um
Young's Modulus 67.2 GPa
Thermal Conductivity 0.18W/cm/°C
Specific Heat 0.356J/g/°C
Thermal Expansion 7.57x10-6/C at 20°C

ZnSe with:

Diameter

 +0.0/-0.10mm
Length +/-0.2mm
Chamfer 0.20+/-0.10mm @ 45°
Surface Figure (power/irregularity) at 0.63pm 1.0 fringe/0.5 fringe
Parallelism < 40 arc Seconds
Perpendicularity <5arc min
Surface Quality 10/20
