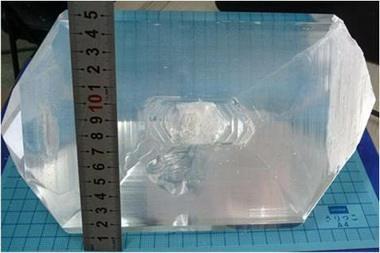

LBO Nonlinear Optical Crystals Wide Acceptance Angle Small Walk - Off Angle
LBO Nonlinear Optical Crystals Wide Acceptance Angle Small Walk - Off Angle
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
Jinan,China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30 days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Flatness :
λ/8 at 633nm
Clear aperture :
90% of full aperture
Aperture tolerance :
±0.1mm
Angle tolerance :
≤± 0.25°
Coatings :
C1---AR@1342(<0.2%)&671(R<0.5%)nm C2---AR@1319(<0.2%)&659.5(R<0.5%)nm C3---AR@1064(<0.2%)&532(R<0.5%)nm C4---AR@946(R<0.2%)&473(R<0.5%)nm C5---AR@914(R<0.2%)&457(R<0.5%)nm C6---AR@800(R<0.2%)&400(R<0.5%)nm
Wavefront distortion :
λ/8@633nm
Description

LBO Wide Acceptance Angle, Small Walk-off Angle With Attractive Price And Fast Delivery

LBO NON-LINEAR CRYSTALS

ADVANTAGES

  • Optical parametric oscillators (OPO) of both type 1 and type 2 phase-matching
  • Non-critical phase-matching for frequency conversion of CW and quasi-CW radiation
  • APPLICATIONS
  • Wide transparency region
  • Broad type 1 and type 2 non-critical phase-matching (NCPM) range
  • Small walk-off angle
  • High damage threshold
  • Wide acceptance angle
  • High optical homogeneity

SPECIFICATIONS

Flatness λ/8 at 633nm
Parallelism ≤20 arcsec
Surface quality 20-10 scratch & dig (MIL-PRF-13830B)
Perpendicularity ≤5 arcmin
Angle tolerance ≤± 0.25°
Dimension tolerance ±0.1mm
Aperture tolerance ±0.1mm
Chip ≤0.1mm
Quality Warranty Period One year under proper use

CRYSTRONG OFFERS

  • Crystals length up to 50 mm and aperture up to 40x40 mm
  • Thin crystals down to 10 μm thickness
  • AR, BBAR, P-coating
  • Different mounting and re-polishing services
  • Accurate quality control
