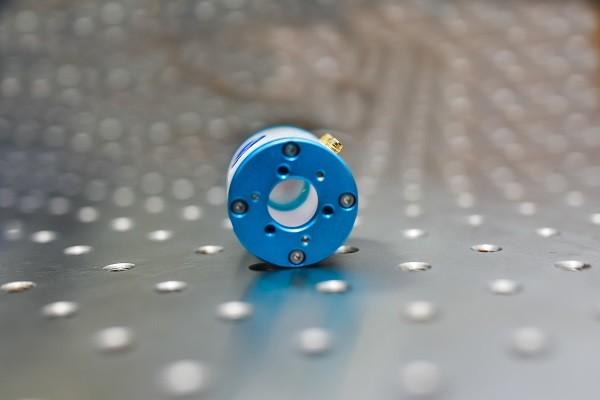

4GW / Cm2 Pockels Optical Modulator Blue Color Case For Laser Cavity Q - Switching
4GW / Cm2 Pockels Optical Modulator Blue Color Case For Laser Cavity Q - Switching
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Aperture :
up to 100x100mm2
Flatness :
λ/8@633nm
Optical Damage Threshold :
>4GW/cm2@1064nm,20
Customized :
Other
Extinction Raito :
>1000:1
Description

KDP Pockel cell Q Switch Blue Color Case For Laser Cavity Q-switching

Products Description:

DKDP Pockels Cells are widely used in laser systems with large caliber, high power and narrow pulse width. They are among the optimal electro-optic Q-switches used in Pulse Laser systems, including OEM laser systems, Medical and cosmetic lasers and Versatile R&D laser systems. We offer KD*P electro-optic Q-switches standard series, and all units are tested for electro-optic function and are supplied with a quality inspection report and suggested alignment routine.

Advantages of Potassium Dideuterium Phosphate DKDP EO Q-switch are as follows:

  1. High deuteration (>98%) DKDP.
  2. No static birefringence
  3. No photorefractive damage
  4. Excellent electric-optical properties: >3000:1 or >1500:1
  5. Compact design for OEM applications
  6. Accessible technical support

SPECIFICATIONS:

Aperture up to 100x100mm2
Dimension tolerance ±0.1mm
Deuteration Level >98%
S/D 10/5
Flatness λ/8@633nm
Angle tolerance(degree) 0.25°,0.25°
Chamfer 0.2mmx45°
Chip 0.1mm
Optical Damage Threshold >4GW/cm2@1064nm,20
Wavelength range 300-1100nm
Extinction Ratio >1200:1
Capacitance 6~10pF@1kHz
