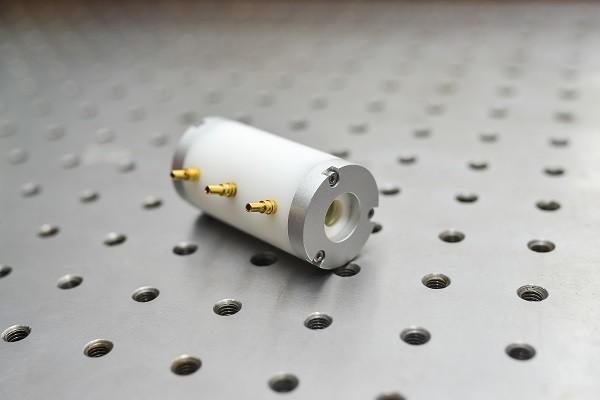

Wave Front Distortion DKDP Pockels Cell Low Capacitance With Compact Size
Wave Front Distortion DKDP Pockels Cell Low Capacitance With Compact Size
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
Jinan,China
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30days upon order quantity
Packaging Details :
vacuum packaging,plastic box,carton
Transmission :
>98.5%
Capacitance :
<5pF
Crystal Size :
Dia. 8mm X 16mm
Extinction Raito :
>1500:1
Productivity :
2000 pcs per year
Port :
Qing Dao,Ji Nan
Description

Wave Front Distortion Low Capacitance DKDP Pockels Cells With Compact Size

Products Description:

Potassium Dideuterium Phosphate (DKDP, KD*P) Crystal with good Electro-optical properties is most widely used in Electro-optical modulator and Q-switches, as well as in the application of Shutter for high speed photography. Besides, DKDP Crystal is applied in Second, third and fourth harmonic generation, double frequency for Nd laser and Dye laser. For DKDP and KDP Crystal have high laser damage threshold, they are used as a kind of high power laser frequency conversion materials. DKDP Crystal Electro-Optical Cells (DKDP Pockels Cells )from Crystrong has many different apertures, e.g. 5mm dia. 8mm dia. , 10mm dia. , 12mm dia. , 20mm dia. , 30mm dia. , and so on.


KDP and KD*P crystals' polished surfaces are easier to be moistened, however, the user is advised to provide a dry condition (<50%) and the sealed housing for preservation. Crystrong provides bulk supply of high quality KDP and DKDP crystals in diverse sizes for the above applications, as well as custom-made services of crystal select, design and processing.

ADVANTAGES:

  • Economically priced and huge OEM discount
  • Strict quality control
  • Fast delivery
  • Compact size
  • Low absorption
  • Superb technical support always

SPECIFICATIONS:

Voltage Extinction Ratio >2000:1(CP) >1500:1(PP) Collimation <0.5°
Insertion Loss <2% Wavefront distortion λ/6@633nm
Quarter-wave voltage ~3400V Scratch/Dig 20/10
Capacitance 6-10pF Clear Aperture ≥90%
Coatings AR@1064nm(R<0.2%), or customised upon request
Damage threshold 1GW/cm² 10ns 10Hz at 1064nm

Chemical Formula KD2PO4
Transparency Range 200-1600nm
Nonlinear Coefficients d36=0.40pm/V
Refractive index (at 1064nm) No=1.4948, ne=1.4554
Electro-optical Coefficients r41=8.8pm/V
r63=25pm/V
Longitudinal half-wave voltage: Vπ=2.98KV(λ=546nm)
Absorptance: 0.006/cm
Optical damage threshold: >3 GW/cm2
Extinction ratio: >30dB
