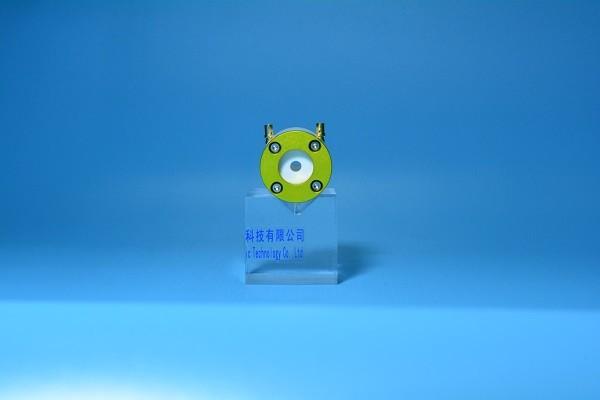

600MW / Cm2 BBO Pockels Cell High Repetition Rate For Changing Polarization State
600MW / Cm2 BBO Pockels Cell High Repetition Rate For Changing Polarization State
Specifications
Brand Name :
CRYSTRONG
Place of Origin :
JINAN CHINA
MOQ :
1-5
Price :
Negotiation
Payment Terms :
Net 30 days
Supply Ability :
Stock
Delivery Time :
5-30 days upon order quantity
Packaging Details :
vacuum packaging , carton
Name :
BB0 Pockels cell
Aperture :
12x12mm2 ~ 2x2mm2
Damage threshold :
600MW/cm2,10Hz,1064nm
Wave front :
λ/8@633nm
Color :
Gold
Flatness :
λ/10@633nm
Description

High Repetition Rate Q-Switch BBO Pockels Cell Minimal Piezoelectric Ringing

Product Description:

BBO-based pockels cell are used to change the polarization state of light passing through it when an voltage is applied to the electrodes of BBO electro-optic crystals. Typical applications include Q-switching of the laser cavity, laser cavity dumping and coupling light into and form

regenerations amplifiers. Low piezoelectric ringing makes BBO Pockels cell attractive for the control of high-power and high repetition rate lasers. Fast switching electronic drivers properly matched to the cell are available for Q-switching, cavity dumping and other applications. BBO Pockels cells are transverse field devices. The quarter-wave voltage is proportional to the ratio of electrode spacing and crystal length, therefor, smaller aperture, lower quarter-wave voltage, besides, double crystal design, which has lower quarter-wave voltage, is widely used to work in half-wave mode with fast switching times.

Specification:

specifications
Aperture 12x12mm2
Length 20mm,25mm
Flatness λ/10@633nm
Wave front λ/8@633nm
Parallelism ＜20 arc sec
Perpendicularity ＜5 arc sec
Surface quality 10-5 20-10 after coatings
Spectral range 210-2000nm
Damage threshold 600MW/cm2,10Hz,1064nm

Dual Crystal BBO Pockels cell Specifications:

Clear aperture diameter, mm 2.8 3.6 4.6
Crystal size (WxHxL), mm 3x3x20 4x4x20 5x5x20
Capacitance, pF 8 8 8
Optical transmission, % 98 98 98
Extinction ratio >500:1 >500:1 >500:1
Dimensions, mm 25x60 25x60 25x60

Advantages:

  • Minimal piezoelectric ringing
  • Low absorption
  • Broad transmission ranges from 200nm to 2000nm
  • Compact size

Application:

  • High repetition rate Q-switch
  • High repetition rate regenerative amplifier control
  • Cavity dumping
  • Beam chopper
