4 Port POE Injector, POE Adapter, POE Power Supply_POE-IJ804
4 Port POE Injector, POE Adapter, POE Power Supply_POE-IJ804
4 Port POE Injector, POE Adapter, POE Power Supply_POE-IJ804
4 Port POE Injector, POE Adapter, POE Power Supply_POE-IJ804
4 Port POE Injector, POE Adapter, POE Power Supply_POE-IJ804
4 Port POE Injector, POE Adapter, POE Power Supply_POE-IJ804
Specifications
Place of Origin :
CHINA
Model Number :
POE-IJ804
Output Power :
51 - 100W
Output Type :
Quad
Delivery Time :
3-30days
Input Voltage :
DC 9-48V
Description

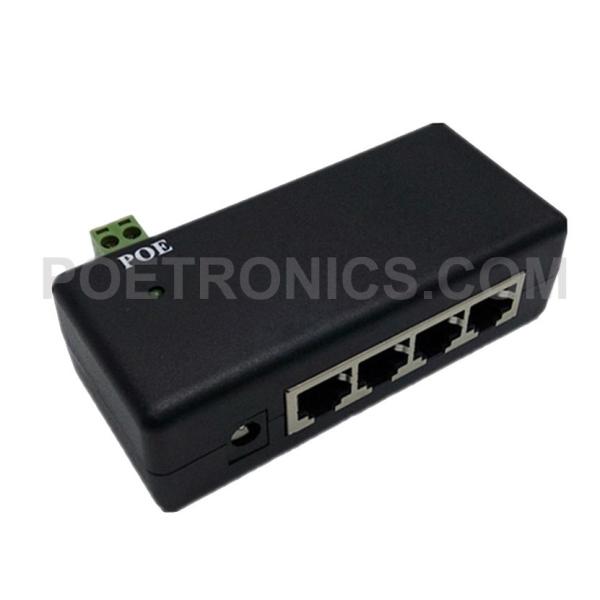

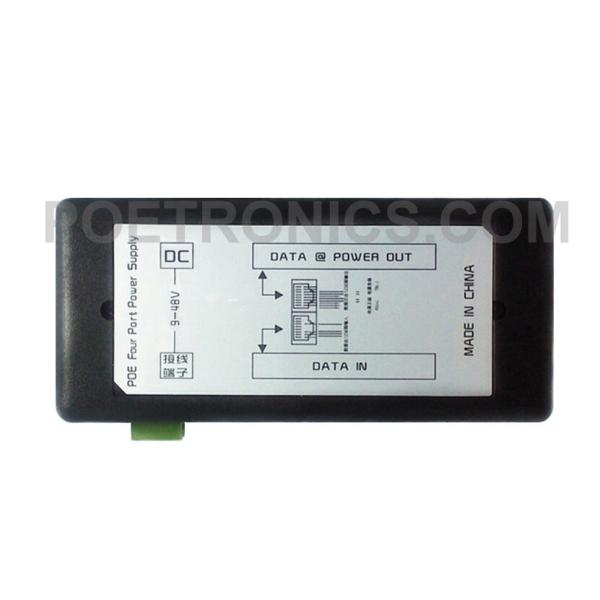

4 Port Passive POE Injector, POE Power Adapter, POE Power Supply

POE-IJ804

Over View

POE (Power Over Ethernet) is a technology solution that, under the case of no any change for current Ethernet Cat5 wiring/cabling infrastructure, not only transfer data signal but also provide direct current power for some IP based terminal device (like IP telephony, Wireless LAN access point, Network camera, etc.).

POE technology can minimize the cost while ensuring the normal operation of the existing network and the safety of the existing structured cabling.

POE also known as power system based on local area network (POL, Power over LAN) or Active Ethernet, sometimes it is briefly called Power Over Ethernet, this is the latest standard specification of transferring data and delivering power while taking advantage of existing standard Ethernet transmission cable, and preserve the compatibility between user and the existing Ethernet system.

IEEE 802.3 is new standard of POE in the base of Ethernet power system, which add related standard in power over network cable directly through IEEE 802.3, it’s an extension of existing Ethernet standard, and it is also the first international standard in power distribution.

Technical Specification

Item

4 Port Passive POE Injector

Product specification

1×Bare PCB board;

2×4 Network Ports;

1×DC Female Connector;

1×Cable connector;

1×Capacitance;

1×Resistance;

1×Indicator;

1×Double Sided PCB;

4 Pairs one-to-one Data-in and Data & Power Out;

It can powering and transferring data for 4 pcs of device at the same time;

Power Supply line 4/5 “+”; 7/8 “-”;

Data line 12/36

Product Application

Engineer centralized wireless bridge, wireless AP, security surveillance, network camera centralized power supply, etc.

Input voltage range

9-48V

Input current range

4-8A

Power connection

1. DC Male connector 5.5×2.1mm;

2. Screwing DC connecting terminal.

Packing

PC Bubble pack

Input DC power:

DC: 9-48V/5A

DC Connector

Inner Positive “+” 2.1mm;

Outer Negative “-” 5.5mm

Network Power Port

Pin 4/5 positive, Pin 7/8 negative

Product tags

poe injector 16 port

,

48 port poe injector

,

poe injector 4 port
