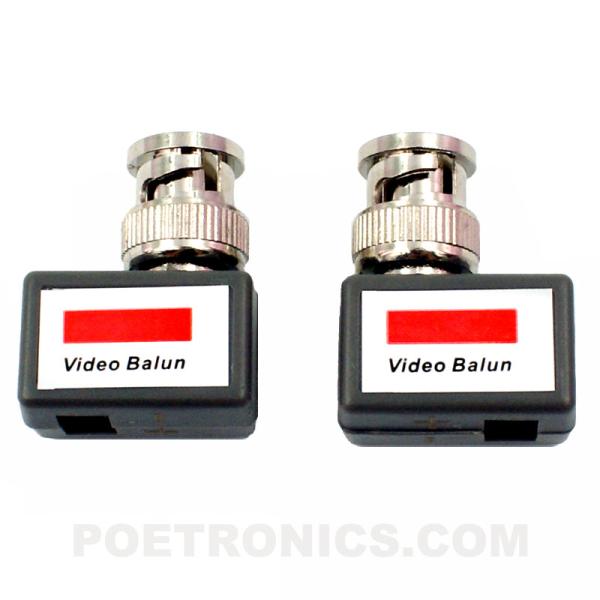

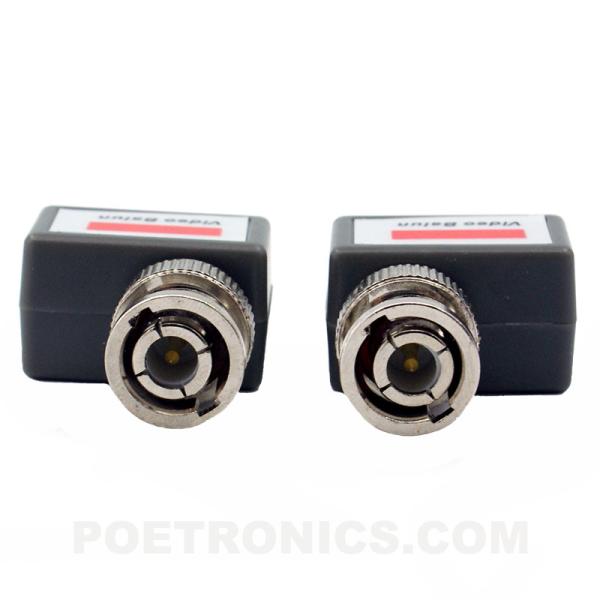

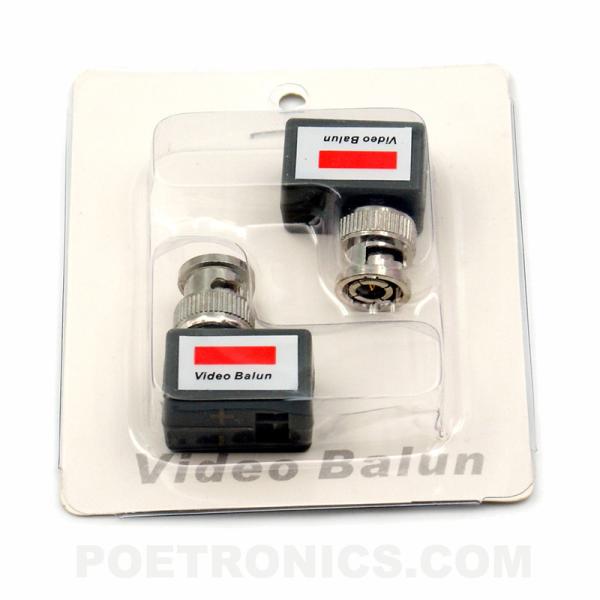

PVB-ET05 (400-600m) BNC Male to Screw Terminal CCTV Passive Video Balun transceiver
PVB-ET05 (400-600m) BNC Male to Screw Terminal CCTV Passive Video Balun transceiver
PVB-ET05 (400-600m) BNC Male to Screw Terminal CCTV Passive Video Balun transceiver
PVB-ET05 (400-600m) BNC Male to Screw Terminal CCTV Passive Video Balun transceiver
PVB-ET05 (400-600m) BNC Male to Screw Terminal CCTV Passive Video Balun transceiver
PVB-ET05 (400-600m) BNC Male to Screw Terminal CCTV Passive Video Balun transceiver
Specifications
Place of Origin :
CHINA
Model Number :
PVB-ET05
Transmission Distance :
400-600m
MOQ :
200
Packaging Details :
0.35kg/pair,300 pairs/ctn, 11kg/ctn, 35*34*28cm
Delivery Time :
2-30days
Description
CCTV Passive Video Balun twisted-pair transceiver

● Enhanced Passive twisted-pair transmitter

● Model: PVB-ET05

● Require Cat.5 or Cat.5e unshielded twisted pairs cable;

● Rejection: 15khz –6Mhz 60dB typ

● No Audio/Data Channel

● Impedance Coax,male BNC:75Ω

● UTP(Screwless)Terminal Block or UTP RJ45, Data Connector:100Ω

● Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video

● Signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)

● UTP Port Terminal Block

● Easy installation, save cost of labor, cable and project;

● Plug and Play, no power required, 400 meters effective transmission distance of colored images, 600 meters black and white images;

● Four channels video transmitting through a cat.5 cable simultaneously, Differential signaling transmitting method, Interference Rejection, Lightning protection, Static free, Adaptive noise filtering;

● Video Frequency respons: DC-6Mhz Common-mode/Differential-mode

● Environment Temperature:-10~+50℃ Humidity:0~95%

● Packing: 0.035kg/pair, 300 pairs/ctn, 11kg/ctn, 35*34*28cm

PVB-ET05 (400-600m) BNC Male to Screw Terminal CCTV Passive Video Balun transceiver
