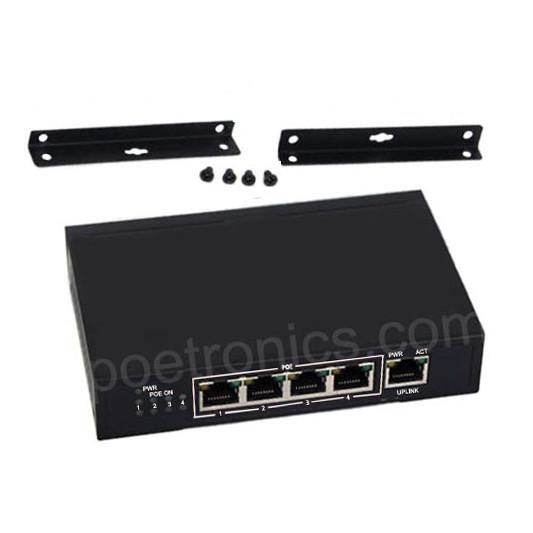

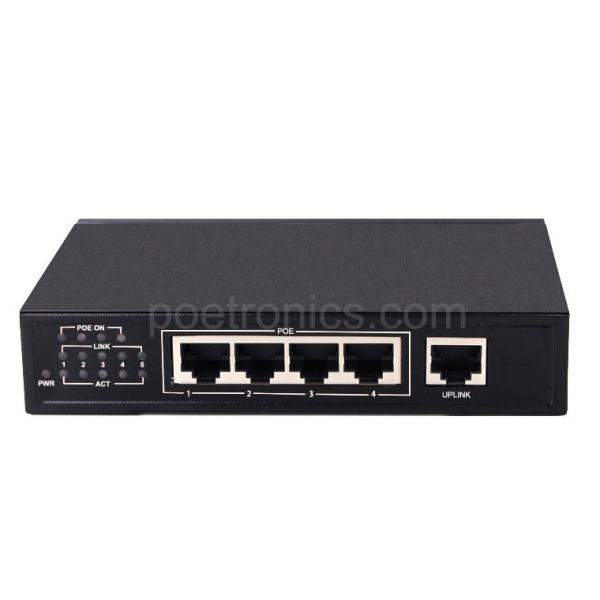

POE-S104F

4 Port 10/100Mbps 15.4W IEEE 802.3af POE Switch

1 Port UPLINK, 1.0Gbps Bandwidth

48VDC/1.25V External Power Adapter

POE-S104F, 4 Port 100Mbps PoE Switch, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers four 100Mbps PoE port which supply 15.4 watts of power each port for devices such as IP CCTV Systems, Wireless Access Points, and VoIP Phone, etc.

Auto sensing technology delivers 15.4 watts power to 802.3af PoE supported devices. It reduces about 75% energy consumption when the POE Switch is in idle period. It also improves office work efficiency and reduce workshop network congestion with a 1 Gbps switching capacity. There are LED lights indicates the connected device status which will highly improve the troubleshooting efficiency. Finally, this 4 Port PoE Switch is fitted in a solid metal enclosure.

Detailed Specs

Model: POE-S104F

Power Over Ethernet: 15.4 watts PoE.

PoE Power Pin: 1,2 “+”; 3,6 “-“.

Protocol Standards:

IEEE 802.3af Power over Ethernet (PoE);

IEEE 802.3 10Base-T;

IEEE 802.3u 100Base-TX;

IEEE 802.3ab 1000Base-T;

IEEE 802.3x Flow Control.

Ports: 4 100M Auto-MDIX PoE/PoE+RJ-45 ports.

Data Transfer Rate: 10/100 Mbps (Ethernet, Half / Full Duplex).

Forwarding Rate: 10 Mbps/14,880 pps; 100 Mbps/148,800 pps.

Switch Capacity: 1Gbps.

Power Supply: DC48V/1.25A(External Power Supply<AC 100-240V, 50/60 Hz>).

LED Indicator: Status of Power, PoE, Link / Activity.

Power Consumption: Min. 8 Watts (standby); Max. 48 Watts.

Ambient Environment:

Operating temperature: 0° ~ 45°C (32° ~ 113°F);

Storage: -20° ~ 90°C (-4° ~ 194°F);

Operating Humidity: Max 90% (non-condensing).

Safety Approved: CE, FCC, ROHS.

Dimension: 140mm×91mm×28mm.

Net Weight: 0.85 kg/piece.
