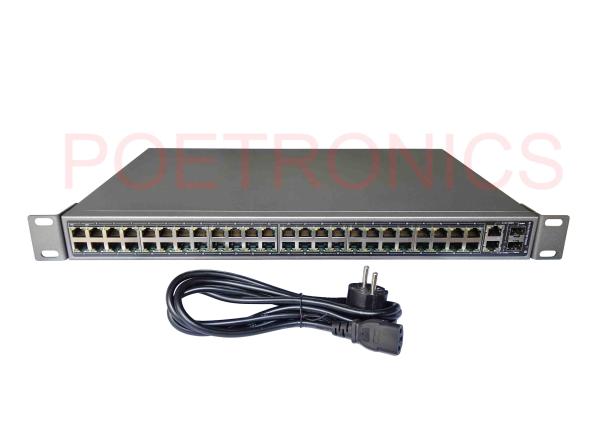

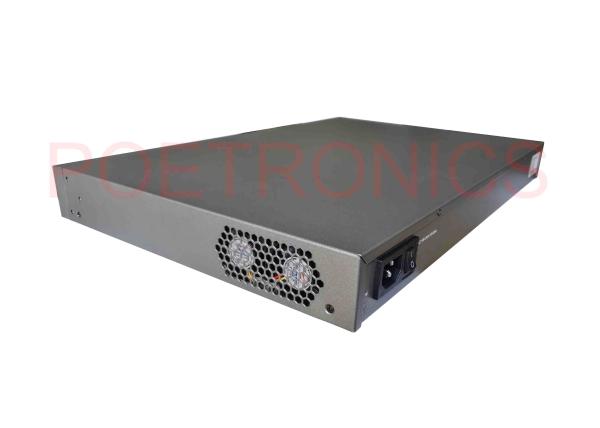

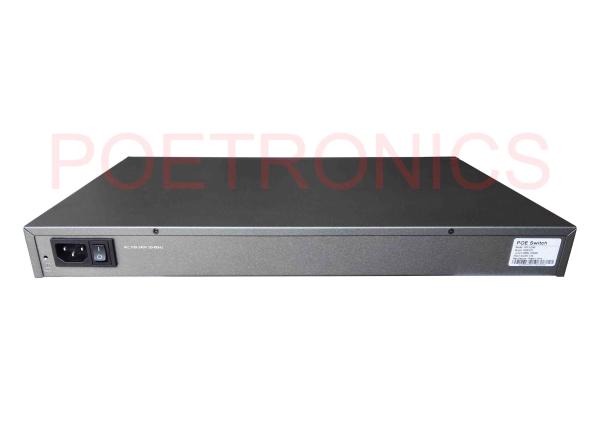

Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
Specifications
Brand Name :
POETRONICS
Model Number :
POE-S2248GFBC
Certification :
CE,ROHS,FCC
Place of Origin :
CHINA
MOQ :
50 units
Price :
to be comfirmed
Payment Terms :
L/C, T/T, Western Union, Ebay
Supply Ability :
8500 units
Delivery Time :
1-30 days
Packaging Details :
Carton box
Ports :
48 100Mbps POE + 2 Gigabit Combo Uplink
Power Source :
700W Built-in Power Supply
Protocol :
IEEE802.3af/at
Description

POE-S2248GFBC (48FE POE + 2GE Combo Uplink, 700W Built-in Power Source, IEEE802.3af/at)

Overview

POE-S2248GFBC is the PoE Switch that with most output channels we have developed and produced, with which 48 units of Powered Device (PD) such as IP Camera, VoIP Phone, Wireless AP/Routers etc. that can be working together at the same time powered by only one piece of PoE Switch.

Total 700W power output from POE-S2248GFBC, compliance with IEEE802.3af/at that allows it supply max 30W for each port and compatible with most equipment. There are also 2 GE (10/100/1000Mbps) RJ45 and SFP combo ports accessible for uplink. Meanwhile its size 1U (19’’) is available for installing on rack and easy to wire and manage.

Key Features

◆ 48 10/100Mbps PoE ports + 2 Gigabit Combo uplink ports

◆ Compliance with IEEE802.3af/at, support full port advance standard detection

◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure.

◆ Support Auto MDI/MDIX, Store-and-forward switching, 17.6G bandwidth.

◆ Max 30W for every single port, total rated output power 700W.

◆ Support wire speed switching and jumbo frame transmission for all ports

◆ Plug and play, self-adaption, second-level lightning protection

◆ PoE working status can be read and analyzed through LED indicators on front panel

◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable.

POE-S2248GFBC Ports & Panel Description Diagram

Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)

Specification

Item 48 Port FE(10/100Mbps) Power over Ethernet Switch (Built-in power supply)
Model POE-S2248GFBC
Interface 48 FE PoE Output + 2 GE RJ45 & 2 GE SFP Combo Uplink
Power Input AC100-240V, 50/60Hz
Power Output DC48-57V, 700W Built-in Power Supply, Max 30W single port
Data Exchange POE: 10/100Mbps, Uplink: 10/100/1000Mbps Store and Forward
Bandwidth/MAC 17.6Gbps, 8K
Ambient Environment Operating temperature: 0~40℃
Storing temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing
Storing Humidity: 5%~90% RH, No condensing
Standards Protocols

IEEE 802.3 Ethernet media access control protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3z 1000base-x Gigabit Fiber Ethernet

IEEE 802.3af/at Power over Ethernet cable pairs or device

IEEE 802.3x Flow control
Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex
Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Safety Approved CE, FCC, RoHS
Size/Weight

Net Weight: 5.4kg, Gross Weight: 5.6kg

PoE Size:445*292*45mm (L*W*H)

Packing Box Size:497*393*97mm (L*W*H)
Packaging Accessory 1x User Manual, 1x AC Cable, 2x Mounting Racks, 7x Philip's head screws

Application Diagram

Latest POE-S2248GFBC 48x100Mbps PoE + 2xGigabit Combo Uplink IEEE802.3af/at PoE Switch (Built-in 700W Power Supply)
