Specifications
Brand Name :
POETRONICS
Model Number :
POE-S1108GB
Certification :
CE, FCC, ROHS
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable PoE Price
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
205,000/month
Delivery Time :
1-30days
Packaging Details :
26pcs/ctn; 50x44.5x58cm, 37.6kgs/ctn (Equipped with EU AC Cable)
Switch Capacity :
20Gbps
Ports :
8GE PoE + 1GE RJ45 & 1GE SFP Uplink
Data Rate :
Full/All 10/100/1000Mbps(Gigabit)
Flow Control :
Full-Duplex & Half-Duplex
Function :
POE-Power over Ethernet
Products Status :
Make-to-Order
Power Input :
AC100-240V; 50~60Hz or DC48-57V
Power Output :
DC 48-57V, 150W (Inbuilt)
PoE Power :
Max. 30W every single port
PoE Current :
Max. 625mA every single Port
Description

POE-S1108GB (8GE POE + 1GE RJ45 & 1GE SFP Uplink, Built-in 150W, 20G, IEEE802.3af/at)

Overview

POE-S1108GB is 8 port Gigabit Power over Ethernet Switch that with 8 ports 10/100/1000Mbps PoE, 1 port Gigabit and 1 port Gigabit SFP uplink, it is IEEE802.3af/at compliant, equipped with 150W built-in power supply source.

It comes with AC100-240V direct input power supply and DC48-57V external power supply two different alternative power input modes. Now it has been widely applied to security surveillance, wireless AP, VoIP phone and other compatible PoE powered device.

Key Features:

◆ 8 10/100/1000Mbps PoE port + 1 Gigabit RJ45 & 1 Gigabit SFP uplink port.

◆ Compliance with IEEE802.3af/at, support full port advance standard detection.

◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure.

◆ Support Auto MDI/MDIX, Store-and-forward switching, 20G bandwidth.

◆ AC100-240V, 50/60Hz or DC 48~57V two different input modes.

◆ Max 30W for every single port, total rated output power 150W.

◆ Support wire speed switching and jumbo frame transmission for all ports.

◆ Plug and play, self-adaption, second-level lightning protection.

◆ PoE working status can be read and analyzed through LED indicators on front panel.

◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable.

PoE-S1108GB Ports & Panel Description

Front Panel:

Latest POE-S1108GB 8xGigabit PoE + 1xGE RJ45 & 1xGE SFP Uplink IEEE802.3af/at PoE Switch (Built-in 150W Power Source)

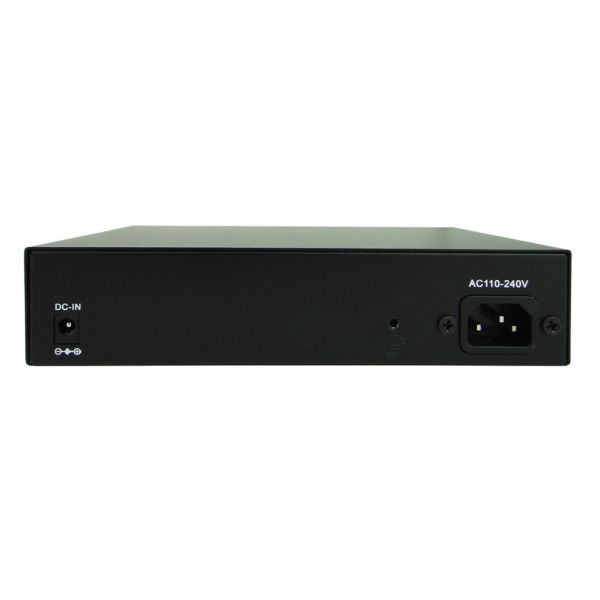

Back Panel:

Latest POE-S1108GB 8xGigabit PoE + 1xGE RJ45 & 1xGE SFP Uplink IEEE802.3af/at PoE Switch (Built-in 150W Power Source)

Technical Specs

Model POE-S1108GB
Ports 8 Gigabit POE + 1 Gigabit RJ45 & 1 Gigabit SFP Uplink
Power Input AC 100-240V, 50/60Hz or DC48-57V alternative input power supply mode
Power Output DC 48-57V, 150W(Rated), Max. 30W for every single port
Data Exchange Full 10/100/1000Mbps, Store and Forward switching
Bandwidth/MAC 20G, 4K
Power/Data Assignment Power: pin 1,2,4,5 “+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,6
Ambient Environment

Operating temperature: 0~40℃
Storing temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing
Storing Humidity: 5%~90% RH, No condensing
Network Protocol

IEEE 802.3 Ethernet media access control protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3af/at Power over Ethernet cable pairs or device

IEEE 802.3x Flow control

IEEE802.1q VLAN Network bridge operation
Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex
Network Medium

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
System Mode

N: Normal free communication among all ports;

V: PoE Ports VLAN isolating from each other;

P: CCTV Network Surveillance transmission mode.
Safety/Certificate CE, FCC, RoHS
Warranty 1 Year (Implied)
Size/Weight

POE Switch(150W) Size: 208mm*150mm*45mm (L*W*H)

Packing Box Size: 265mm*220mm*65mm (L*W*H)

Net Weight: 1.4kg, Gross Weight: 1.6kg

Application Diagram

Latest POE-S1108GB 8xGigabit PoE + 1xGE RJ45 & 1xGE SFP Uplink IEEE802.3af/at PoE Switch (Built-in 150W Power Source)
