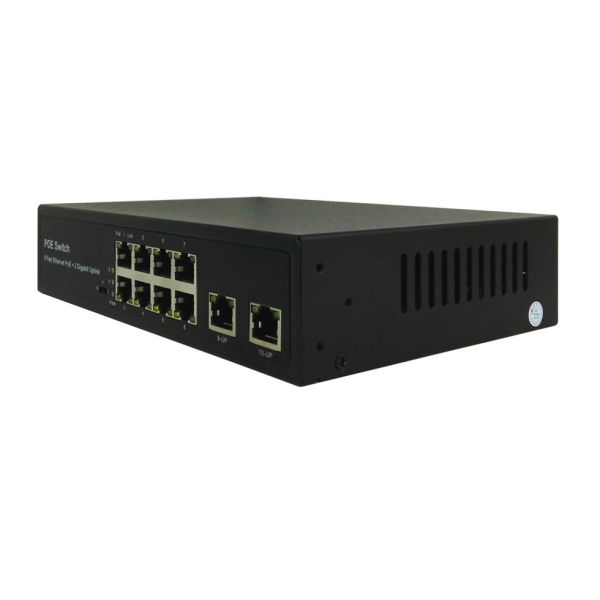

Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
Specifications
Brand Name :
POETRONICS
Model Number :
POE-S2008GFB
Certification :
CE, FCC, ROHS
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable PoE Price
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
235,000/month
Delivery Time :
1-30days
Packaging Details :
26pcs/ctn; 50x44.5x58cm, 37.6kgs/ctn (Equipped with EU AC Cable)
Switch Capacity :
16Gbps
Ports :
8FE PoE + 2GE Uplink
Data Rate :
POE:10/100Mbps; Uplink: Gigabit
Flow Control :
Full-Duplex & Half-Duplex
Function :
POE-Power over Ethernet
Products Status :
Make-to-Order
Power Input :
AC100-240V; 50~60Hz or DC48-57V
Power Output :
DC 48-57V, 100W/120W/150W (Inbuilt)
PoE Power :
Max. 30W every single port
PoE Current :
Max. 625mA every single Port
Description

POE-S2008GFB (8FE POE + 2GE Uplink, Built-in 120W/150W, 16G, IEEE802.3af/at)

Overview

POE-S2008GFB is 8 port Power over Ethernet Switch that comes with 8 ports 10/100Mbps PoE and 2 ports Gigabit uplink, it is IEEE802.3af/at compliant, equipped with 100W, 120W or 150W built-in regulated power supply source which are available and optional as required.

It comes with default normal free communication among each PoE ports, VLAN ports isolation and 250m super remote transmission total 3 kinds of optional different operating modes, it’s widely apply to security surveillance, wireless AP, VoIP phone and other compatible powered device.

Key Features:

◆ 8 10/100Mbps PoE port + 2 10/100/1000Mbps uplink port

◆ Compliance with IEEE802.3af/at, support full port advance standard detection

◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure.

◆ Support Auto MDI/MDIX, Store-and-forward switching, 16G bandwidth.

◆ Max 30W for every single port, total rated output power 120W/150W.

◆ Support wire speed switching and jumbo frame transmission for all ports

◆ Plug and play, self-adaption, second-level lightning protection

◆ PoE working status can be read and analyzed through LED indicators on front panel

◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable.

PoE-S2008GFB Ports & Panel Description

Front Panel:

1. 120W Power Inbuilt:

Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)

2. 150W Power Inbuilt:

Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)

Back Panel:

Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)

Technical Specs

Model POE-S2008GFB
Ports 8 10/100Mbps POE + 2 10/100/1000Mbps Uplink
Power Input AC 100-240V, 50/60Hz or DC48-57V alternative input power supply mode
Power Output DC 48-57V, 100W/120W/150W(Rated), Max. 30W for every single port
Data Exchange POE: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and Forward switching
Bandwidth/MAC 16G, 4K
Power/Data Assignment Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6
Ambient Environment

Operating temperature: 0~40℃
Storing temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing
Storing Humidity: 5%~90% RH, No condensing
Network Protocol

IEEE 802.3 Ethernet media access control protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3af/at Power over Ethernet cable pairs or device

IEEE 802.3x Flow control

IEEE802.1q VLAN Network bridge operation
Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex
Network Medium

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
System Mode

Standard Free communication;

VLAN Port Isolation;

250m Supper remote transmission, 3 modes switchable.
Safety/Certificate CE, FCC, RoHS
Warranty 1 Year (Implied)
Size/Weight

POE Switch(120W) Size: 208mm*150mm*33mm (L*W*H)

POE Switch(150W) Size: 208mm*150mm*45mm (L*W*H)

Packing Box Size: 265mm*220mm*65mm (L*W*H)

Net Weight: 1.3/1.4kg, Gross Weight:1.5/1.6kg

Application Diagram

1. 120W Power Supply Inbuilt:

Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)

​2. 150W Power Supply Inbuilt:

Latest POE-S2008GFB 8x100Mbps PoE + 2x1000Mbps Uplink IEEE802.3af/at PoE Switch (Built-in 100/120/150W Power Source)
