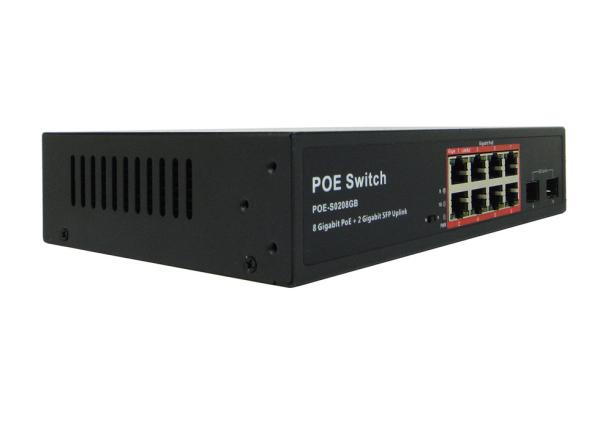

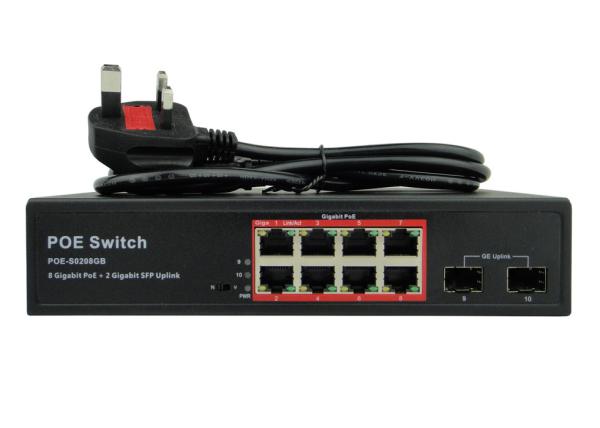

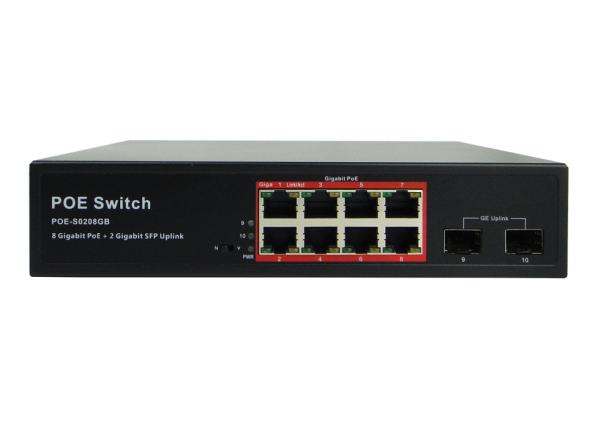

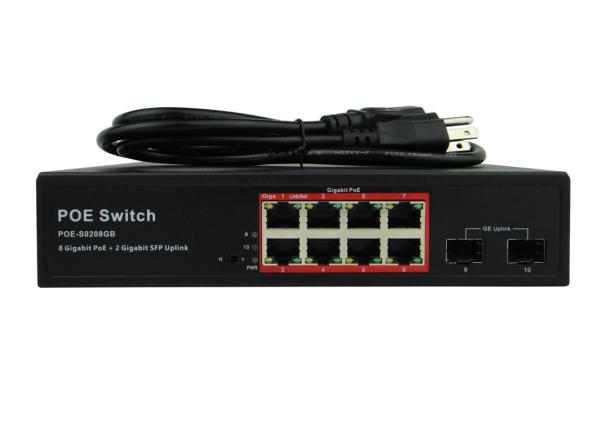

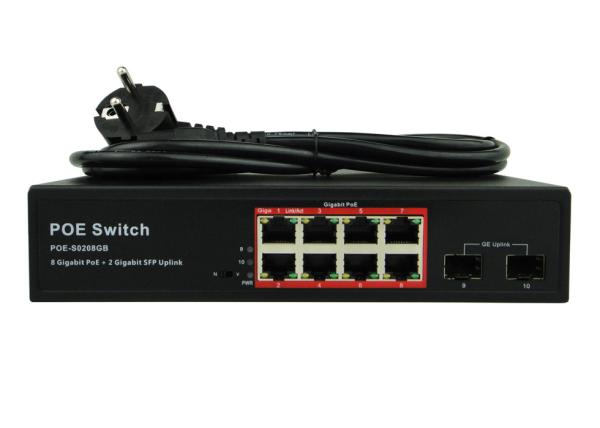

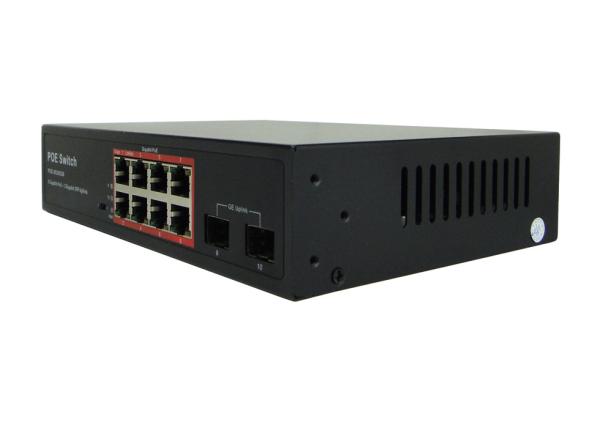

POE-S0208GB (8GE POE + 2GE SFP Uplink, 150W Built-in Power Source, 20G Bandwidth, IEEE802.3af/at)

Overview:

POE-S0208GB is 8 port Gigabit Power over Ethernet Switch that comes with 2 ports Gigabit SFP uplink, IEEE802.3af/at compliant, equipped with 150W built-in power supply source, which allows every single port supplies maximum up to 30W power at PSE, all these power transmits through pins 1, 2, 4, 5 (+) and pins 3, 6, 7, 8 (-) over Ethernet cable and require cat-5 least or higher quality ones, which will ensure the least power lost in the transmission.

POE-S0208GB has AC100-240V built-in direct input power supply and DC48-57V external power supply two different alternative power modes, which brings higher flexibility on the power source. Rack mounting kits are also available for being installed on rack or cabinet. Finally, PoE-S0208GB, as a power source equipment, is applicable primarily to IP CCTV camera, VoIP Phone, Wireless Access Point, Portable device, Access Control or other PoE compatible Powered Device.

Key Features

◆ 8 10/100/1000Mbps PoE port + 2 Gigabit SFP uplink port.

◆ Compliance with IEEE802.3af/at, support full port advance standard detection.

◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back pressure.

◆ Support Auto MDI/MDIX, Store-and-forward switching, 20G bandwidth.

◆ AC100-240V, 50/60Hz or DC 48~57V two different power input modes.

◆ Max 30W for every single port, total rated output power 150W.

◆ Support wire speed switching and jumbo frame transmission for all ports.

◆ Plug and play, self-adaption, second-level lightning protection, 19’’ rack mountable.

◆ PoE working status can be read and analyzed through LED indicators on front panel.

◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable.

PoE-S0208GB Ports & Indicators Description

Specification

Application Diagram
