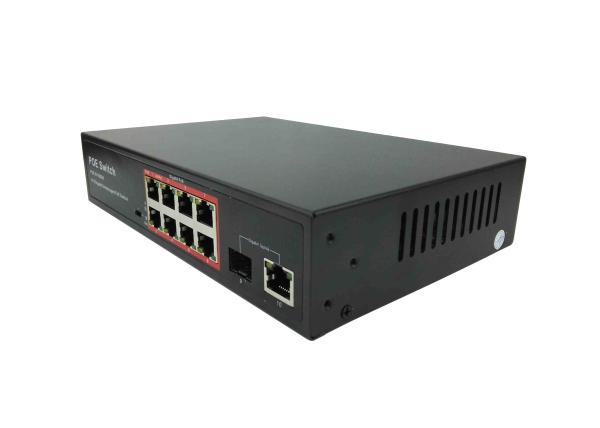

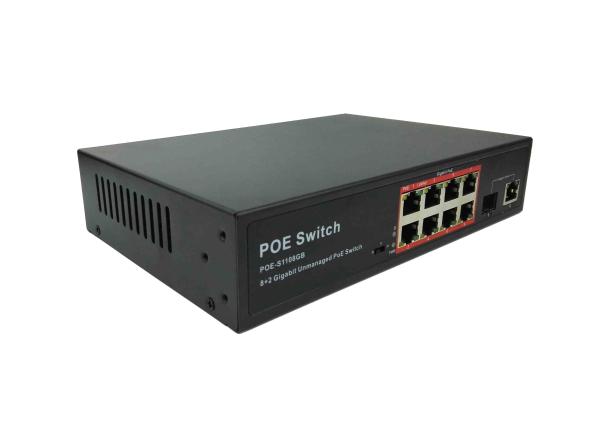

POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S1108GB(8GE+1GE+1GE SFP)_8 Port Gigabit IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
Specifications
Brand Name :
POETRONICS
Model Number :
POE-S1108GB
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
50units
Payment Terms :
Western Union, T/T, L/C, Money Gram, Paypal
Supply Ability :
8550units/month
Delivery Time :
1-30 days
Packaging Details :
Carton Box
Ports :
8 Gigabit PoE + 1 Gigabit RJ45 & 1 Gigabit SFP Uplink
Power Source :
150W Built-in Power Supply
Ethernet Protocol :
IEEE802.3af/at
Description

POE-S1108GB (8GE POE + 1GE RJ45 & 1GE SFP Uplink, 150W Built-in Power Source, 20G Bandwidth, IEEE802.3af/at)

Overview:

POE-S1108GB, 8 port Gigabit unmanaged Power over Ethernet switch, comply with IEEE802.3af/at and equipped with 150W internal power source which enables it compatible with most Powered Device such as IP Camera, Wireless Access Point, VoIP Phone, etc.

It’s the upgrading of POE-S1108G that with internal instead of external power supply. It works base on three different modes include Normal free communication, VLAN port isolation and IP CCTV monitoring transmission, either one is switchable to each other as user required. Meanwhile, it also has alternative power supply mode AC100-240V and DC48-57V.

Every single port output power up to 30W max and deliver through pins 1/2"+", pins 3/6"-" over standard Ethernet cable Cat5, Cat5e, Cat6, Cat6e or those in higher quality which on the other hand will reduce much power loss in the transmission especially for the Ethernet power system that has a long distance between PSE(Power Source Equipment) and PD(Powered Device).

Key Features

  • 8 Gigabit POE + 1 Gigabit RJ45 Uplink + 1 Gigabit SFP Uplink.
  • Compliance with IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af/at.
  • AC100-240V, 50/60Hz or DC 48~57V two different input modes.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX, Store-and-forward, 20G Bandwidth.
  • Switchable system modes: Normal free communication, VLAN port isolation and Super remote transmission
  • MAX 30W for every single port, total external input power amount 150W.
  • All ports support wire speed switch, jumbo frame transmission.
  • Grounding connection and lightning protection are both available.
  • Plug and play, self-adaption, 19’’ rack mountable.

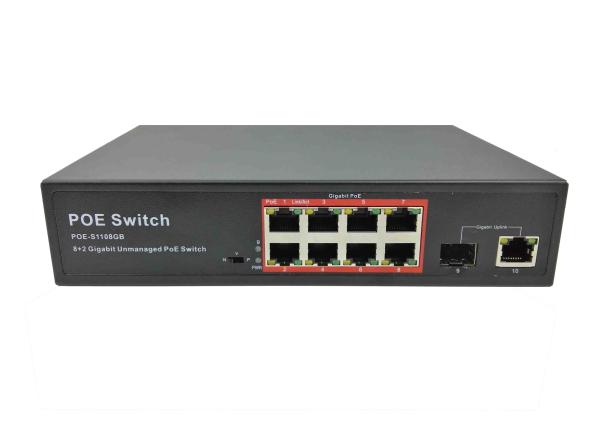

  • PoE working status can be read and analyzed through LED indicators on front panel.
  • Applied to CCTV IP camera, Wireless AP, VoIP phone, etc.

Specification

Item 8 Port GE(10/100/1000Mbps) Unmanaged Power over Ethernet Switch
Model POE-S1108GB
Interface 8 Gigabit PoE + 1 Gigabit RJ45 Uplink + 1 Gigabit SFP Uplink

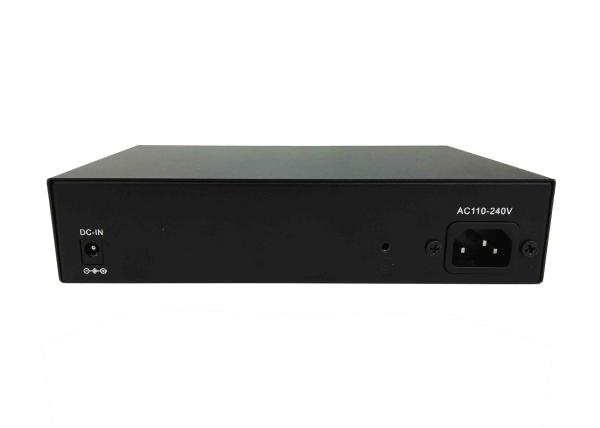

Power Input DC 48~57V and AC100-240V 50/60Hz two different power input modes
Power Output DC 52V, 150W Built-in Power Supply, Max 30W for every single port
Data Exchange 10/100/1000Mbps, Store and Forward
Power/Data Assignment Power: pin 1,2/4,5 “+”, 3,6/7,8 “-”; Data: pin 1,2,3,6
Bandwidth/MAC 20Gbps, 8K
Ambient Environment Operating temperature: 0~50℃
Storing temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing
Storing Humidity: 5%~90% RH, No condensing
Standard Protocols

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASX

IEEE 802.3af/at

IEEE 802.3x

IEEE 802.1q VLAN
System Setting N: Normal free communication among all ports, apply to universal data exchange, 100-150m transmission distance.
V: 1-4 PoE Ports VLAN isolating from each other, effectively restrain cyber storm, ARP virus and other network failure; Apply to wireless AP and other equipment.
P: Max 250meters Super remote transmission mode, apply to long distance transmission in IP CCTV, Wireless network and other PoE systems.
Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex
Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 6(Cat6e) and above UTP/STP(≤150m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Safety Approved CE, FCC, ROHS
Warranty 1-3 years
Size/Weight

PoE Size: 210*140*45mm (L*W*H)

Packing Box Size: 260*205*65mm (L*W*H)

Net Weight:1.2kg, Gross Weight: 1.4 kg

Application Diagram
