POE-S2008FB(8FE+2FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S2008FB(8FE+2FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S2008FB(8FE+2FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
POE-S2008FB(8FE+2FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
Specifications
Brand Name :
POETRONICS
Model Number :
POE-S2008FB
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
50units
Payment Terms :
Western Union, T/T, L/C, Money Gram, Paypal
Supply Ability :
8260units/month
Delivery Time :
1-30 days
Packaging Details :
Carton Box
Ports :
8 100Mbps PoE + 2 100Mbps Uplink
Power Source :
150W Built-in Power Supply
Ethernet Protocol :
IEEE802.3af/at
Description

POE-S2008FB (8FE POE + 2FE Uplink, 150W Built-in Power Source, 2.2G Bandwidth, IEEE802.3af/at)

Overview:

POE-S2008FB, is 8 ports Fast Ethernet unmanaged Power over Ethernet switch, comes with 2 ports 10/100Mbps uplink, equipped with 150W built-in power supply source and conforming to IEEE802.3af and IEEE802.3at, which all together allows it supply maximum 30W power for every single port at PoE Ethernet output end, all these power transmits through pins 1,2 (+) and pins 3,6(-) over Ethernet cable and require cat5 least or higher quality ones, which will ensure the least power lost in the transmission.

There are two different alternative power supplying modes for this PoE switch which including AC100-240V and DC 48-57V, it brings high flexibility on the power input. It also comes with rack mounting kits that allows it easy to be installed on rack or cabinet. Finally, PoE-S2008FB, as a power source equipment is applicable primarily to IP CCTV camera, Voice over Internet Protocol phone, Wireless Access Point, Portable device, Access Control or other PoE compatible Powered Device (PD).

Key Features

  • 8 Port 10/100Mbps POE+2 Port 10/100Mbps uplink.
  • Compliance with IEEE802.3af/at.
  • AC100-240V, 50/60Hz or DC 48~57V two different input modes.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX, Store-and-forward, 2G bandwidth.
  • MAX 30W for every single port, total external input power amount 150W.
  • Supports wire speed switch and jumbo frame up to 9KB transmission for all ports.
  • Plug and play, self-adaption, lightning protection, 19’’ rack mountable.
  • PoE working status can be read and analyzed through LED indicators on front panel.
  • Applied to CCTV IP camera, Wireless AP, VoIP phone, etc.

Specification

Item 8 Port Fast Ethernet (10/100Mbps) Unmanaged Power over Ethernet Switch
Model POE-S2008FB
Interface 8 FE PoE + 2 FE Uplink
Power Input DC 48~57V and AC100-240V 50/60Hz two different power input modes
Power Output DC 52V, 150W Built-in Power Supply, Max 30W for every single port
Data Exchange 10/100Mbps, Store and Forward Switching
Power/Data Assignment Power: pin 1,2 “+”, 3,6 “-”; Data: pin 1,2,3,6
Bandwidth/MAC 2Gbps, 1K
Ambient Environment Operating temperature: 0~40℃
Storing temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing
Storing Humidity: 5%~90% RH, No condensing
Standards Protocols

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3af/at

IEEE 802.3x

IEEE 802.1q VLAN
System model Default standard;VLAN isolation,Super 250meters supply
System Setting N: Normal free communication among all ports, apply to universal data exchange, 100-150m transmission distance.
V: 1-8 PoE Ports VLAN isolating from each other, effectively restrain broadcast and multicast storm, ARP virus and other network failure; Apply to wireless AP and other equipment.
S: Max 250meters Super remote transmission mode, apply to long distance transmission in IP CCTV, Wireless network and other PoE systems.
Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Network Medium

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
Safety Approved CE, FCC, ROHS
Warranty 1-3 years
Size/Weight

PoE Size: 210*140*45mm (L*W*H)

Packing Box Size: 260*205*65mm (L*W*H)

Net Weight: 1.2 KG, Gross Weight: 1.4 KG

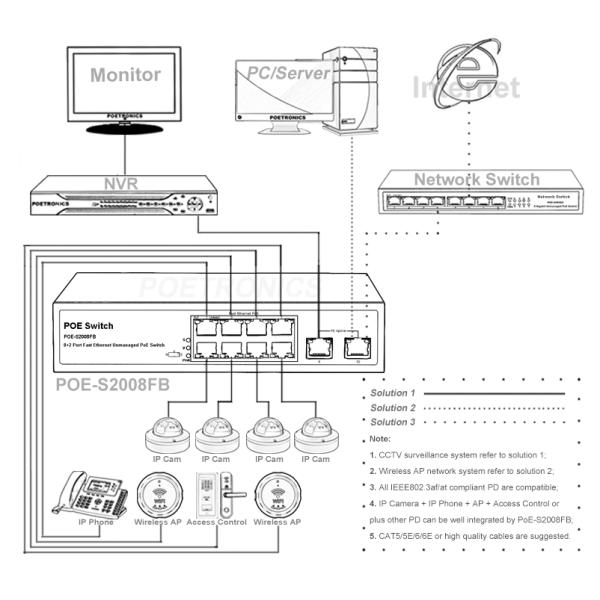

Application Diagram

POE-S2008FB(8FE+2FE)_8 Port 10/100Mbps IEEE802.3af/at PoE Switch with 150W Built-in power supply (Newly Developed)
