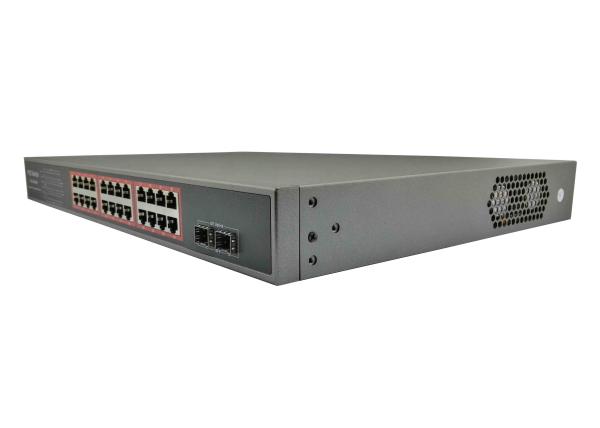

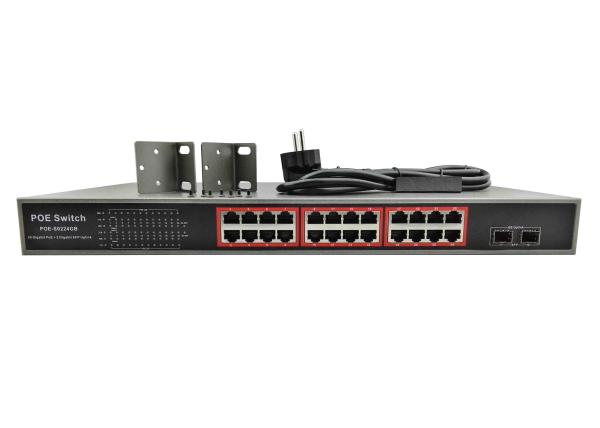

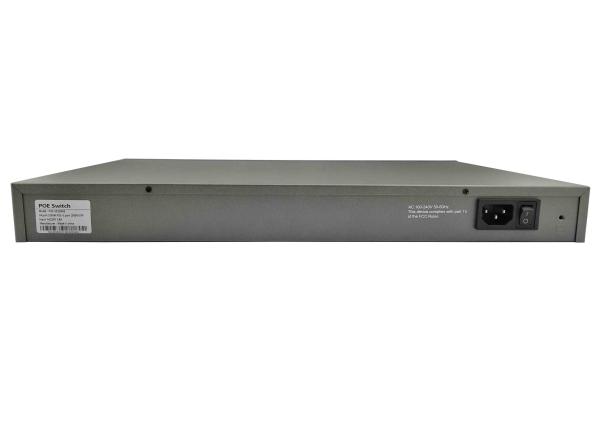

POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
Specifications
Brand Name :
POETRONICS
Model Number :
POE-S0224GB
Certification :
CE,ROHS,FCC
Place of Origin :
CHINA
MOQ :
50 units
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
8150units/month
Delivery Time :
1-30days
Packaging Details :
Carton Box
Ports :
24 Gigabit PoE + 2 Gigabit SFP Uplink
Power Source :
350W Built-in Power Supply
Ethernet Protocol :
IEEE802.3af/at
Description

POE-S0224GB (24GE POE + 2GE SFP Uplink, Built-in 350W, 52G Bandwidth, IEEE802.3af/at)

Overview

POE-S0224GB, 24 ports Gigabit unmanaged Power over Ethernet switch, comply with IEEE802.3af/at and equipped with 350W internal power supply which enables it compatible with most powered device such as IP Camera, Wireless AP, VoIP Phone, PDA, Intelligent Access Control, etc.

It comes with 2 ports Gigabit SFP optical uplink to build a super remote transmission system, and it has to works with optical fiber transceiver or fiber switches to link to back-end such as NVR, PC/Server, switches etc. It’s suitable for applying to where require anti-electromagnetic interference and communication security such as residential area surveillance or WLAN network building, or other places like enterprise, hospital, campus, etc.

Key Features

  • 24 port Gigabit POE + 2 port Gigabit SFP uplink
  • Auto MDI/MDIX, Store-and-forward, 52G Bandwidth, 4.1M cache.
  • Compliance with IEEE 802.3af/at.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Max 30W for every single port, total rated output power 350W.
  • All ports support wire speed switch, jumbo frame transmission.
  • Plug and play, self-adaption, lightning protection, 19’’/1U rack mountable.
  • POE working status can be read and analyzed through LED indicators on front panel.
  • Applied to CCTV IP camera, wireless AP, VoIP phone, etc.

Specification

Item 24 Port Gigabit Unmanaged Power over Ethernet Switch
Model POE-S0224GB
Interface 24 GE PoE Output + 2 GE SFP Uplink
Power Input AC100-240V, 50/60Hz
Power Output DC48-57V, 350W Built-in power supply, Max 30W every single port
Data Exchange POE: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and Forward
Power/Data Assignment Power: pin 1,2/4,5 “+”, pin 3,6/7,8 “-”; Data: pin 1,2,3,6
Bandwidth/MAC 52Gbps, 8K, 4.1M cache
Ambient Environment Operating temperature: 0~40℃
Storing temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing
Storing Humidity: 5%~90% RH, No condensing
Standards Protocols

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000Base-x

IEEE 802.3af/at

IEEE 802.3x
Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex
Ethernet Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Safety Approved CE, FCC, ROHS
Warranty 1-3 years
Size/Weight

PoE Size: 440*290*45mm (L*W*H), 19’’ rack mountable

Packing Box Size: 497*393*97mm (L*W*H)

Net Weight: 4.2kg, Gross Weight: 4.5Kg

Application Diagram

POE-S0224GB (24GE+2GE SFP) 24 Port Gigabit IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
