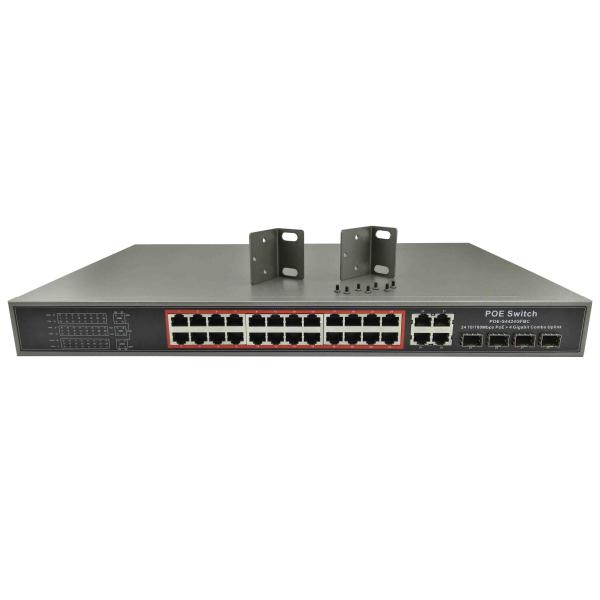

POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
Specifications
Brand Name :
POETRONICS
Model Number :
POE-S4424GFBC
Certification :
CE,ROHS,FCC
Place of Origin :
CHINA
MOQ :
50 units
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
7580units/month
Delivery Time :
1-30days
Packaging Details :
Carton Box
Ports :
24 100Mbps PoE + 4 Gigabit RG45 & 4 Gigabit SFP Combo Uplink
Power Source :
350W Built-in Power Supply
Ethernet Protocol :
IEEE802.3af/at
Description

POE-S4424GFBC (24FE POE + 4GE COMBO Uplink, Built-in 350W, 12.8G, IEEE802.3af/at)

Overview

POE-S4424GFBC is 24 ports Fast Ethernet unmanaged Power over Ethernet switch with 4 ports Gigabit combo uplink, conforming to IEEE802.3af/at and equipped with built-in 350W power supply source which enables it compatible with different powered device that require power range from 0W to 25W, such as Network CCTV Camera, Voice over Internet Protocol Phone, Wireless Access Point, Intelligent Access Control, Portable Device, etc.

Key Features

  • 24 port 10/100Mbps POE + 4 Gigabit RJ45 & 4 Gigabit SFP Combo uplink
  • Compliance with IEEE 802.3af/at.
  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
  • Auto MDI/MDIX, Store-and-forward, 12.8G Bandwidth
  • Max 30W for a single port, total rated output power 350W.
  • All ports support wire speed switch, jumbo frame transmission.
  • Plug and play, self-adaption, lightning protection, 19’’/1U rack mountable.
  • PoE status can be read and analyzed through LED indicators on front panel.
  • Applied to CCTV IP camera, wireless AP, VoIP phone, etc.

Specification

Item 24 Port FE(10/100Mbps) Unmanaged Power over Ethernet Switch
Model POE-S4424GFBC
Interface 24 FE PoE Output + 4 GE RJ45 & 4 GE SFP Combo Uplink
Power Input AC100-240V, 50/60Hz
Power Output DC48-57V, 350W Built-in Power Supply, Max 30W for every single port
Data Exchange POE: 10/100Mbps, Uplink: 10/100/1000Mbps, Store and Forward
Power/Data Assignment Power: pin 1,2 “+”, pin 3,6 “-”; Data: pin 1,2,3,6
Bandwidth/MAC 12.8Gbps, 16K
Ambient Environment Operating temperature: 0~40℃
Storing temperature: -40~70℃
Operating Humidity: 10%~90% RH, No condensing
Storing Humidity: 5%~90% RH, No condensing
Protocol Standards

IEEE 802.3X

IEEE 802.3i 10BASE-T X

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3af/at

IEEE 802.3x
Data Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex
Transmission Medium

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Safety Approved CE, FCC, ROHS
Warranty 1-3 years
Size/Weight

PoE Size: 440*290*45mm (L*W*H)

Packing Box Size: 497*393*97mm (L*W*H)

Net Weight: 4.8kg, Gross Weight: 5.2Kg

Application Diagram

POE-S4424GFBC (24FE+4GE COMBO) 24 Port 100Mbps IEEE802.3af/at PoE Switch 350W Built-in Power Supply (Newly Developed)
