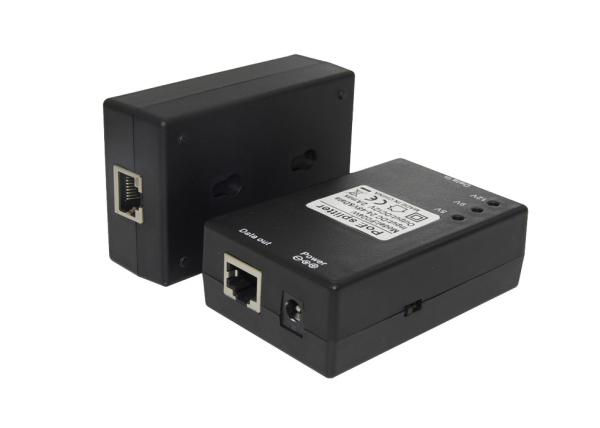

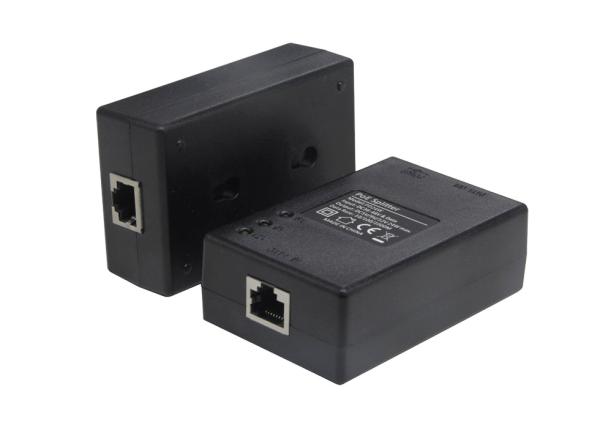

PD24W 24W PoE Splitter with 5V/9V/12V Switchable Output Voltage Gigabit IEEE802.3af/at Compliant
PD24W 24W PoE Splitter with 5V/9V/12V Switchable Output Voltage Gigabit IEEE802.3af/at Compliant
PD24W 24W PoE Splitter with 5V/9V/12V Switchable Output Voltage Gigabit IEEE802.3af/at Compliant
PD24W 24W PoE Splitter with 5V/9V/12V Switchable Output Voltage Gigabit IEEE802.3af/at Compliant
Specifications
Brand Name :
POETRONICS
Model Number :
PD24WG
Certification :
CE, FCC, ROHS
Place of Origin :
CHINA
MOQ :
50
Delivery Time :
2-30days
Packaging Details :
Self-Styled Plastic Bag
Size :
85×55mm×28mm
Weight :
0.12kgs
Input :
DC36-57V
Output :
DC5V/9V/12V, 24W Max.
Protocol :
IEEE802.3af/at
Description

24W Max 10/100/1000Mbps IEEE802.3af/at compliant PoE Splitter

PD24WG 24W 10/100/1000Mbps PoE splitter, which is an economical and practical PoE remote power equipment, with excellent performance and developed in accordance with the IEEE802.3af standard. It can separate power and data from the connected network cable. This Power Splitter will be used in connected with PoE injector or standard POE switch by Cat5 cables least. There are 5Vdc, 9Vdc and 12Vdc three kinds of output voltage with the power supply equipment (PoE injector). It helps to expand home networks, office networks, and is not restricted by layout of power line.

Feature:

1. 24W Max PoE PD Splitter.

2. Support the IEEE 802.3af/at Power over Ethernet standard.

3. Support 10/100/1000Mbps data transmission.

4. Support 5V, 9V, 12V DC switchable output voltage.

5. Circuit isolation protection, effective protection of electrical equipment.

6. High quality design, guarantees the stability and reliability of the equipment in work

Specification

Item PoE Splitter
Model PD24WG
Input Voltage/Frequency PoE IN: 36-57VDC
Output Voltage/Power DC 5V/9V/12V Switchable, Max 24W
Interface Port PoE RJ45 Input Port, 10/100/1000Mbps(Gigabit)

Ethernet Data RJ45 Output Port, 10/100/1000Mbps(Gigabit)

Terminal DC Power Output Port, DC 5V, 9V, 12V Switchable
Power/Data Assignment Power: pin 1,2,4,5“+”, pin 3,6,7,8 ”-”; Data: pin 1,2,3,4,5,6,7,8
Data Exchange 10/100/1000Mbps
Ambient Environment Operating/Storing Temperature: 0~40℃, -10~80℃
Operating/Storing Humidity: 5%~90% RH, 5%~90% RH, both are no condensation
Network Medium

10Base-T: Category 3,4,5(Cat3,4,5) and above UTP/STP(≤100m)

100Base-TX: Category 5,5e(Cat5,5e) and above UTP/STP(≤100m)

1000Base-T: Category 5e,6(Cat5e,6) and above UTP/STP(≤90m)
Special Feature

Wall Mountable, Output voltage is switchable as required

Plastic enclosure, natural heat dissipation

Under-voltage, over-voltage, over-current and short-circuit protection

Isolative integrated circuit scheme

System Reliability: MTBF>=30k hours

IEEE802.3af/at compliant, Comply to CE, FCC, RoHS
Warranty one year
Dimension/Weight Product Size: 85×55mm×28mm; N.W.: 0.12KG, G.W.: 0.15KG
