Specifications
Brand Name :
BOE
Model Number :
NV105WAM-N31
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,000 piece per week
Delivery Time :
5-8 working days
Packaging Details :
20 cm * 30 cm * 40 cm
Size (inch) :
10.5 inch
Resolution :
1920 (H) × 1280 (V) Pixels
Active area :
222.048(H) × 148.032 (V) mm
Color gamut :
TYP:sRGB 100%, Min:sRGB:96%.
Display Color :
16.7M(8bit)
Weight :
115(max)g
Description

Introduction:

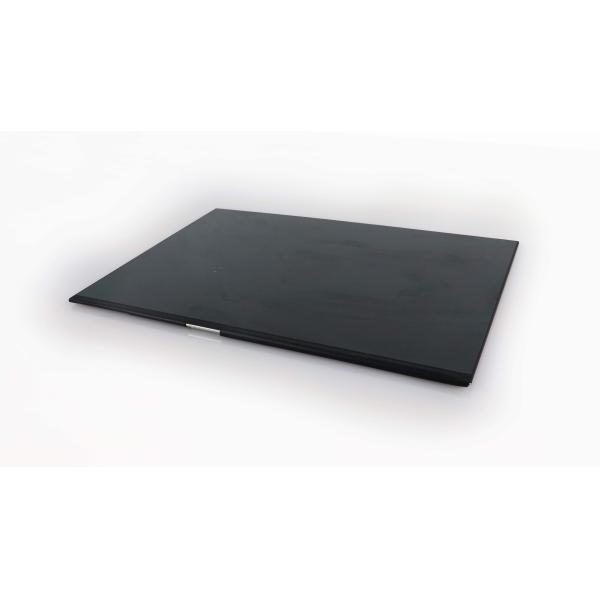

NV105WAM-N31 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.51 inch diagonally measured active area with Full-HD+ resolutions (1920 horizontal by 1280 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(8bit) colors and color gamut sRGB100%. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable for Notebook PC. All input signals are eDP1.4a interface compatible.

Application:

Notebook PC (Wide type)

Parameter:

Model NV105WAM-N31
Number of Pixel

1920 (H) × 1280 (V) Pixels

(1 pixel = R + G + B dots)
Active area 222.048(H) × 148.032 (V) mm
Pixel pitch 115.65(H) × 115.65 (V) um
Pixel arrangement RGB Vertical stripe
Color gamut TYP:sRGB 100%, Min:sRGB:96%.
Display Color 16.7M(8bit)
Display mode Normally black

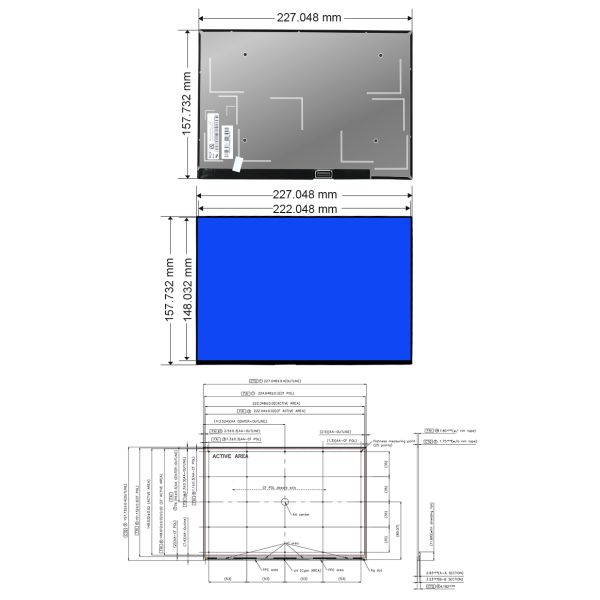

Dimensional outline

227.048± 0.4 (H)*157.732± 0.4(V)(W/ FPC bendin

g)*1.95 (Max)(W/O PCB)

227.048± 0.4 (H)*157.732± 0.4(V)(W/ FPC bendin

g)*4.5 (Max)(W/ PCB)
Surface treatment HC
Surface hardness 2H
Back-light Bottom edge side, 1-LED lighting bar type

Power

consumption

PD : 0.42(Max) W

PBL : 1.69(Max) W

PTotal : 2.08(Max) W
Weight 115(max)g

Features:

1. 2 lane eDP interface with 2.7Gbps link rates

2. Thin and light weight

3. 16.7M (8bit) color depth, color gamut SRGB 100%

4. Single LED lighting bar (Bottom side/Horizontal Direction)

5. Data enable signal mode

6. Green product (RoHS & Halogen free product)

7. Low driving voltage and low power consumption

8. On board EDID chip

9. DPCD Version 1.2

10. Function:PSR2+LRR/BIST/Instant on10.5 Inch Lcd Tft Display Module 1920x1280 Pixels NV105WAM-N31
