Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
Specifications
Brand Name :
Polcd
Model Number :
P020H017-IPS
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,000 piece per week
Delivery Time :
5-8 working days
Packaging Details :
20 cm * 30 cm * 40 cm
Size :
2 inch
Resolution :
240*320
Brightness (cd/m²) :
300 nit
Interface :
MCU 8BIT
Driver Ic :
ST7789V
PIN :
20 pin
Description

Product description:

The 2.0 inch TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in handheld devices like digital cameras, portable media players, and gaming devices.

Parameter:

Model P020H017-IPS
Screen Size 2.0 inch
Number of Pixel 240RGB(H)x320(V)
Display area 30.60(H)x40.80(V)mm
Pixel pitch 0.0425(H)x0.1275(V)mm

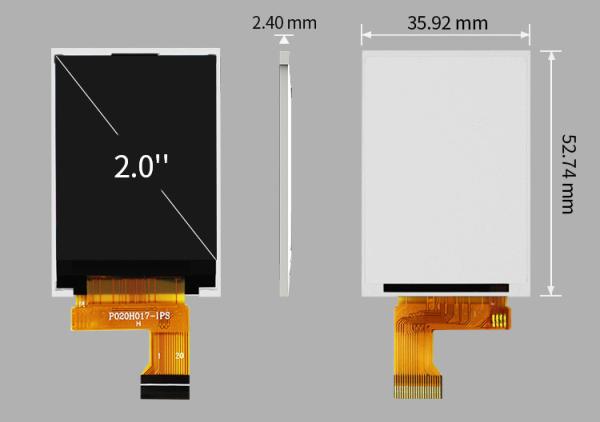

Outline Dimension 35.92x52.74x2.40mm
Pixel arrangement RGB Vertical Stripe
Pins 20 Pins
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 800:1
Interface MCU 8BIT
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃

Features:

High resolution: The 2.0 inch TFT LCD typically has a resolution of 320x240 pixels, which makes it capable of displaying high-quality images and text.

Color depth: It can display up to 262,144 colors, which allows for accurate color representation of images and videos.

Low power consumption: The TFT LCD technology used in the 2.0 inch screen typically has low power consumption, which is important for devices that run on battery power.

Wide viewing angle: The 2.0 inch TFT LCD typically has a wide viewing angle, which means that the screen can be viewed clearly from different angles without distortion or color shifting.

Compact size: The 2.0 inch TFT LCD is a small display screen, making it well-suited for use in handheld devices like digital cameras, portable media players, and gaming devices.

Backlight: The 2.0 inch TFT LCD is often designed with a backlight to improve visibility in low-light conditions, making it suitable for use in various lighting environments.

Touchscreen:Some 2.0 inch TFT LCD screens are designed with touchscreen capabilities, allowing for user input and interaction with the device.

Polcd 262K 2.4Mm 2 Inch Lcd Screen ST7789V IPS TFT LCD Display 240X320
