Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display
Specifications
Brand Name :
Polcd
Model Number :
P028H025-V2
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability :
25,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
2.8
Resolution :
240*320
Display area :
43.20(H)x57.60(V)mm
Brightness (cd/m²) :
270 nit
Interface :
MCU 16bit
Driver Ic :
ILI9341V
Description

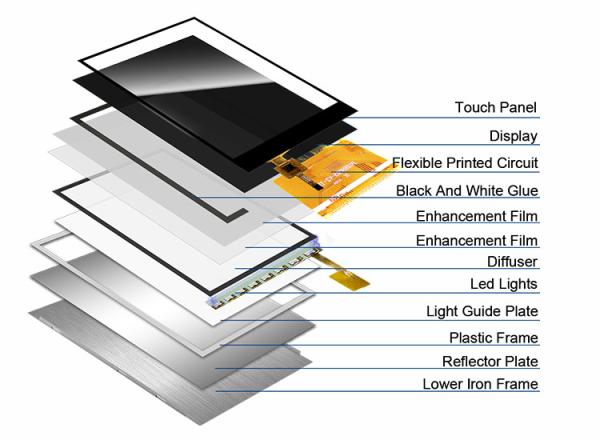

This LCD Touch Panel is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.8 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 300 nits under normal operating.

Parameter:

Model P028H025-V2
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.06(H)x0.18(V)mm
Pins 37 pins
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 12 0'CLOCK
Display Color 262K
Luminance(cd/m2) 270 nit
Contrast Ratio 500:1
Interface MCU 16bit
Back-light LED Side-light type
Drive IC ILI9341V
Operation Temperature -20~70℃
Storage Temperature -30~80℃

Polcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD DisplayPolcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD DisplayPolcd 300 Brightness 240X320 2.8 Inch Lcd Tft Display ILI9341V Medical LCD Display

This type of 8080 MCU 16bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ILI9341V. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).


Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
