Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch
Specifications
Brand Name :
Polcd
Model Number :
P169H002-CTP
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
25,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
1.69
Resolution :
240*280
Brightness (cd/m²) :
300
Interface :
4 Line SPI
Driver Ic :
ST7789V
Pins :
18 pin
Description

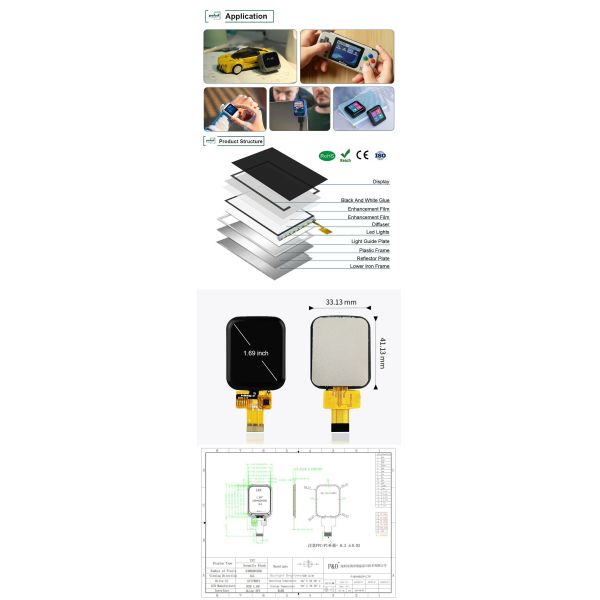

Polcd 1.69 Inch TFT Display 240x280 Capacitive Touch Screen Panel LCD Module for Smart Watch

New published LCD Touch Panel for commercial and industrial use. Our TFT LCD has a 1.69 inch diagonally. The resolution of our tft lcd is 240 * 240. The normal brightness is 350 nits under the test of laboratory. The Interface of this LCD is 4 Line SPI .

P/N P169H002-CTP
Size(inch) 1.69
Resolution 240*280
Active Area(mm) 27.97*32.63
Pixel pitch(um) 116.55*116.55
Outline Dimension(mm) 33.13*41.13*3.61
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Brightness
(cd/m²)		 300
Contrast Ratio 1000:1
Interface 4 Line SPI
Back-light LED Side-light type
Driver Ic ST7789V
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 35
Pin Number 18

We can also customize other types of interfaces and FPCs for you. The ST7789V driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.

Polcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart WatchPolcd 1.69 Inch 240x280 Capacitive Touch Panel Full View Angle LCD Module For Smart Watch

FAQ


Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.

Q: Can we visit your factory? How can I visit your factory? Any limit?

A: Our factory is open to all the visitors. Before you visit you need to make an appointment. There is no limit for visitors. All you need to do is follow the rules in the factory.
