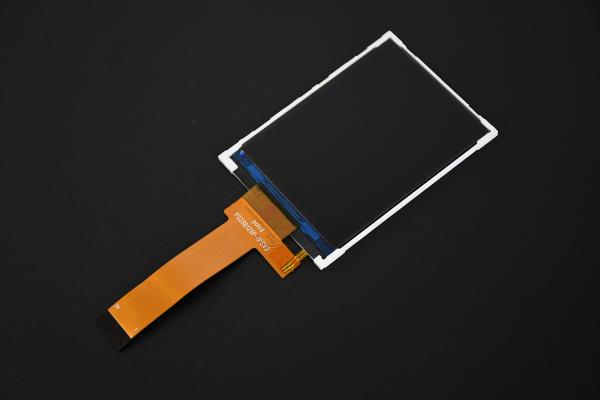

Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6
Specifications
Brand Name :
Polcd
Model Number :
P028B126P-IPSV2
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability :
25,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
2.8
Resolution :
240*320
Brightness (cd/m²) :
900 nit
Display area :
43.20(H)x57.60(V)mm
Interface :
MCU 8bit
Driver Ic :
ST7789P3-G6
Description

Parameter:

Model P028B126P-IPSV2
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.2(H)x57.6(V)mm
Pixel pitch 0.18(H)x0.18(V)mm
Pins 24 pins
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 900 nit
Contrast Ratio 1200:1
Interface MCU 8bit
Back-light LED Side-light type
Drive IC ST7789P3-G6
Operation Temperature -20~70℃
Storage Temperature -30~80℃
