Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5 TFT LCD Modules
Specifications
Brand Name :
Polcd
Model Number :
P035C013-V6-CTP-911
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,000 piece per week
Delivery Time :
1~7 working days
Packaging Details :
20 cm * 30 cm * 40 cm
Screen Size :
3.5 inch
Resolution :
320*480
Brightness (cd/m²) :
300 nit
Interface :
MCU 8/16bit SPI 3/4wire
Driver Ic :
ILI9488
Display area :
48.96(H)x73.44(V)mm
Description

Parameter:

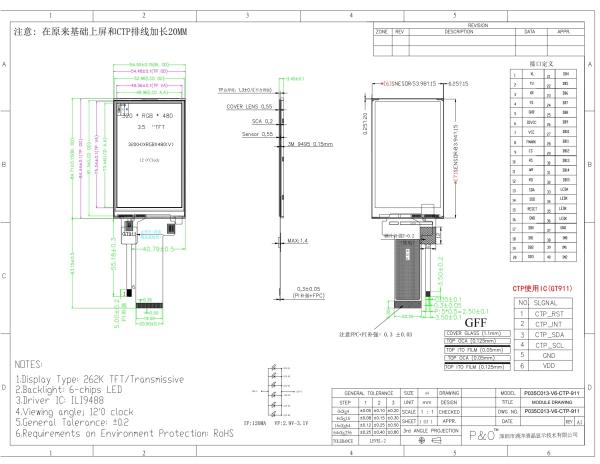

Model P035C013-V6-CTP-911
Screen Size 3.5 inch
Number of Pixel 320RGB(H)x480(V)
Display area 48.96(H)x73.44(V)mm
Pixel pitch 0.153(H)x0.153(V)mm
Pins 40 pins

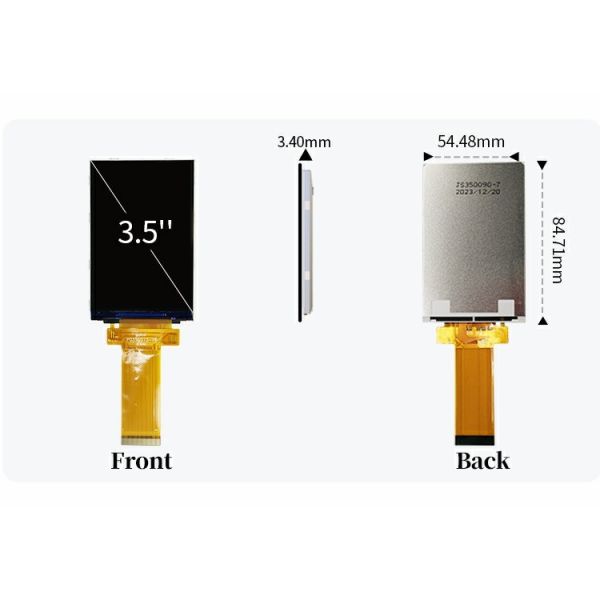

Outline Dimension 54.48x84.71x3.40mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Viewing Direction(eye) 12 0’CLOCK
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 500:1
Surface treatment --
Interface MCU 8/16bit SPI 3/4 wire
Back-light LED Side-light type
Drive IC ILI9488
CTP IC GT911
Operation Temperature -20~70℃
Storage Temperature -30~80℃

Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5Polcd 3.5 Inch QVGA LCD Display Featured 320x480 Resolution MCU SPI Interface Touch Panel 3.5
