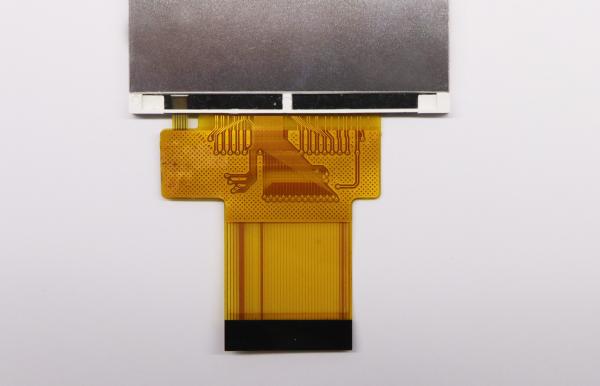

Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen
Specifications
Brand Name :
Polcd
Model Number :
P023B029-IPS
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability :
25,000 PCS per day
Delivery Time :
1~7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Size (inch) :
2.31 inch
Resolution :
480*360
Display area :
46.8(H)x35.1(V)mm
Brightness (cd/m²) :
310 nit
Interface :
RGB 24bit
Driver Ic :
ST7701S
Viewing Direction(eye) :
IPS Full View Angle
Description

Parameter:

Model P023B029-IPS
Screen Size 2.31 inch
Number of Pixel 480RGB(H)x360(V)
Display area 46.8(H)x35.1(V)mm
Pixel pitch 0.0975(H)x0.0975(V)mm
Pin 40 pin
Outline Dimension 51x45.8x2.4mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 310 nit
Contrast Ratio 1200:1
Interface RGB 24bit
Back-light LED Side-light type
LCM Drive IC ST7701S
Operation Temperature -20~70℃
Storage Temperature -30~80℃
