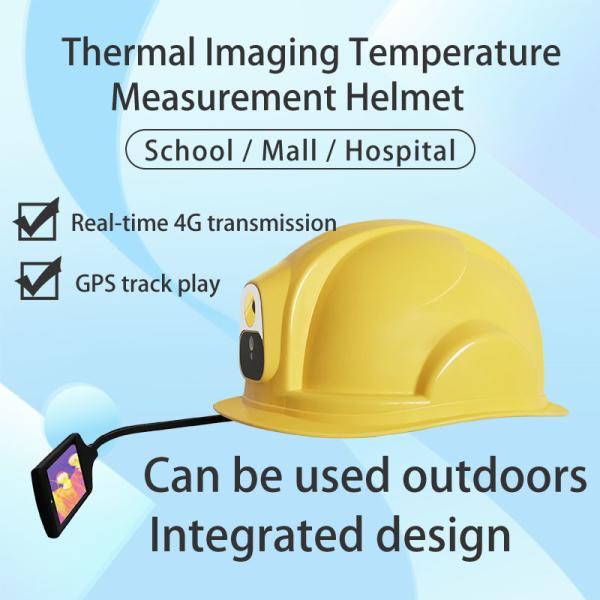

4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light
4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light
4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light
4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light
4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light
4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light
4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light
4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light
Specifications
Brand Name :
OEM
Model Number :
OX-ZP620T
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000/Month
Delivery Time :
5-8 work days
Packaging Details :
Neutral
Product Name :
4G helmet
Pixel :
320X240
Measuring range :
-10 +330 degree
display Range :
2.4 inches T FT
system :
Android 7.1
waterproof :
IP66
Description

Parameters

Technical parameters

thermal imaging parameters

Uncooled infrared focal plane detection
Pixel:320X240
Viewing angle: 45-50 degrees 6.52mm f1.18 Minimum focal length: 0.5 meters
Thermal sensitivity: 0.1 degree
Frame rate: 9Hz; wavelength range: 8-14um
Measuring range: -10 +330 degrees
Measurement accuracy:-+ 0.5 degrees (32--42) + -2 degrees: 100 degrees + -1% above 100 degrees
Display :2.4 inches T FT
SystemOperation system:Android 7.1
Processor:MTK6739 Quad-core ARM@Cortex-A53 MPCore
interfaceVideo interface:mipi
Data interface:USB2.0 micro
Power interface:TYPEC
Visible Optics cameraFoucus range:0.5 Meters----Infinty
Angle of camera:120 °
Photo: 16MP JPEG format
Other detailsDistance of night vision:The human faces can be seen at 10 Meters in a totally black environment
Working time: standby more than 25h, camera work more than 5h
Waterproof:IP66
Lithium battery :5000mAh
Built-in one laser, accurate positioning camera target without deviation
VideoVideo coding resolution1080P/720P mp4Format
Video FPS1080P@30fps /720@30fps
Video bitrate256kbps-8Mbps
Wireless connectedWiFiSupport 802.11b/g protocol,2.4GHZ
3G/4GSupport
Frequecy bandTDD:B38 B39 B40 B41 FDD:B 1.3.5.8.4.7.28B
BluetoothBT4.0
Physical characteristicsWeightAbout 620g
Dimension(L*W*H) 280*140*220mm
Working temperature-30°C to +70°C
Management softwareReal time playsupport real-time 160 way data
Beidou/GPSSame Smarteye screen can check up to 256 camera position tracking
Data uploadsupport D1 H.264 data upload
Wireless intercom:Real time 4G network wireless intercom,Multi person meeting
4G upload:Real time uploaded function
Data of real time uploaded can be checked in the platform
White light parametersVoltage2.85-3.6V
Electric current350MA-1A
Color temperature5000-10000K
Luminous fluxMAX 250lumen(@1000mA)
Beam angle115-130°C
power1W
Light distanceMaximum 10M


4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light4G Smart Temperature Measuring Helmet Camera Android 7.1Bluetooth4.0 GPS Led Light

Our Services

  • Our products warranty is 1 year.
  • We provide free repairing or replacement of products if the goods have any quality problem within the Warranty period.
  • We provide durable maintenance and Tech support service.
  • We will work with you to solve any problems.
  • Custom Development.Products can be customized according to your request and support solution of product include hardware and software.Welcome you to contact us!
