48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
48V 10A AC DC Battery Charger Lifepo4 Battery Charger M8 Screw IP22
Specifications
Brand Name :
oxiang
Model Number :
AC4810PRO
Certification :
ce fcc
Place of Origin :
china
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
5 days
Packaging Details :
package
Charging current: :
48V10A
Max.charging power :
588W
Input voltage :
AC180-260V/50HZ
Charge Battery type :
GEL,Sealed,AGM,LiFePO4,Lithium-ion(NCM),8 battery types are optional, lithium battery 0 ℃ charging is optional

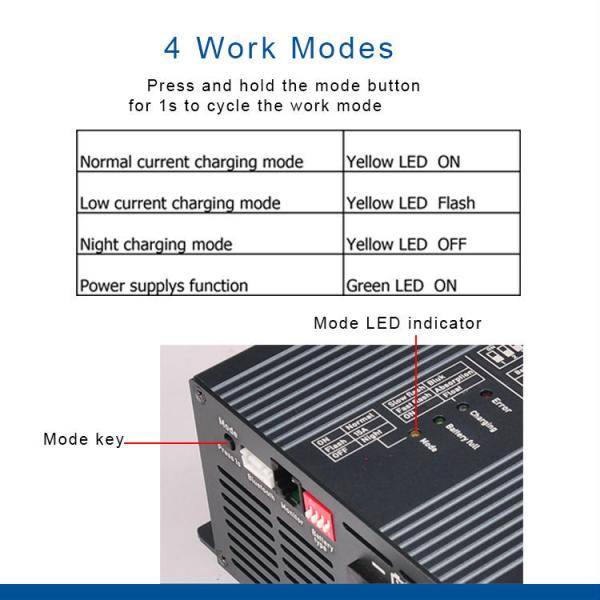

Low current mode :
15A, night mode: 6.5A
Choose Accessories :
Monitor(MT-2)
Bluetooth Dongle(BT10) :
Temperature Sensor(TRS)
Description

48V AC-DC Battery charger
1.Charging current: 48V,10A
2.Max.charging power:588W
3.Input voltage: AC180-260V/50HZ

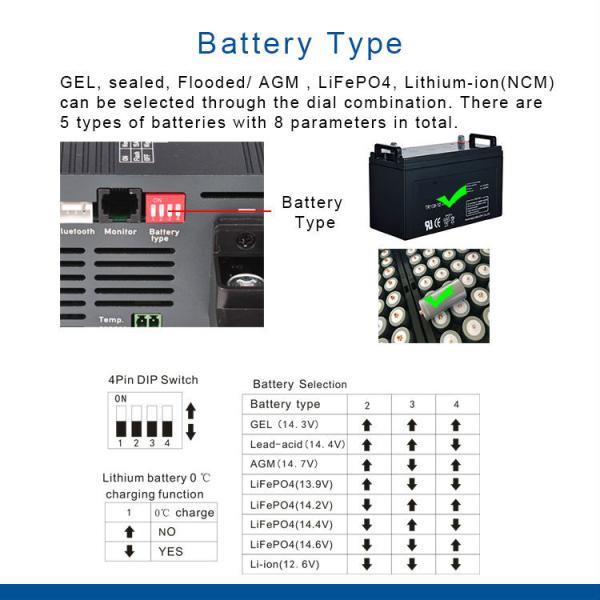

4.Charge Battery type:GEL,Sealed,AGM,LiFePO4,Lithium-ion(NCM),8 battery types are optional, lithium battery 0 ℃ charging is optional
5.Low current mode: 5A, night mode: 2.5A
Choose Accessories: Monitor(MT-2); Bluetooth Dongle(BT10); Temperature Sensor(TRS)

Model AC1230 P ro AC2415 P ro AC4810 P ro
I nput voltage and
frequency range		 180V-260VAC|50HZ
Efficiency >90%
Battery voltage 12V 24V 48V
Max .output current-
Normal mode		 30A 15A 10A
Max .output current-
low current mode		 15A 7.5A 5A
Max .output current-
Night mode(quiet mode)		 10A 6A 3A
Max battery capacity
( recommended)		 300AH 150AH 100AH
M in battery capacity
( recommended)		 100AH 50AH 30AH

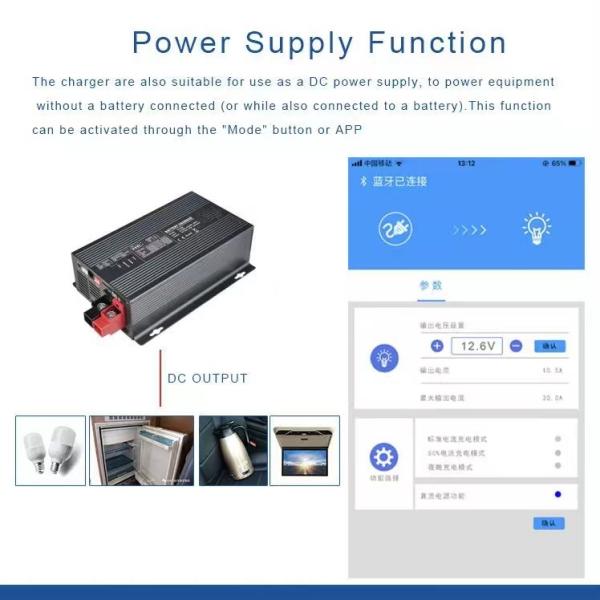

DC Power supply voltage/ current
( Default)		 12 .6V/30A 25 .2V/ 15A 50 .4V/ 10A
DC Power supply voltage/ current
( APP setting range)		 12V- 13 .8V 24V-27 .6V 48V-55 .2V
Temperature compensation
( Except lithium battery)		 18mV/℃ 36mV/℃ 72mV/℃
C harge algorithm 4 - stage adaptive
P rotection Reverse polarity (fuse) , output short
circuit , over temperature
O perating temperature -20 to +50°C
Material & Colour A luminium , I ron grey
Battery connection M8 screw
P rotection category IP22 (indoor use)
Weight 1.4kg
D imensions (h x w x d) 221× 155×70mm
