Specifications
Brand Name :
South Korea LG
Model Number :
PBT/ABS GN-5006FC
Certification :
MSDS
Place of Origin :
Korea
MOQ :
25KG
Price :
USD1.7-2.2KG
Payment Terms :
T/T
Supply Ability :
500T
Delivery Time :
7-15days
Packaging Details :
PE plastic/paper bag
Product name :
PBT/ABS GN-5006FC
Material Shape :
Pellets
Color :
Natural Color
MOQ :
1 Ton
Application :
Electrical and electronic applications are
Type :
100% Virgin Material
Grade :
Injection molding grade
Port :
ShenZhen/GuangZhou,China
Description

Products Description

High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material

 PBT/ABS South Korea LG GN-5006FC injection grade flame retardant grade high impact and high rigidity electrical and electronic shell

Combining the advantages of the two materials: GN-5006FC is an alloy of PBT (polybutylene terephthalate) and ABS (acrylonitrile-butadiene-styrene copolymer), combining the heat and chemical resistance of PBT and the toughness and processability of ABS.
Excellent physical and chemical properties: GN-5006FC has excellent low temperature impact strength, tensile strength, thermal properties, chemical resistance, dimensional stability, its warping and brittle-toughness transition temperature is lower than PBT, the density of PBT is reduced, and the processability is good.
Wide range of applications: Due to its excellent comprehensive performance, GN-5006FC can be used in automotive, electronics, home appliances and other fields

product feature

PBT+ABS
GN5006FC
Product information
Other Certificates MSDS
Part Marking Code >(PBT+ABS)-FR<
Material Shape Pellets
Process Injection molding
FR V-2
Material Attribute Non Halogen
specification ·UL

Application
·E&E Applications · IT equipment ·Office automation equipment
UL File NO. E248280
Certificate
Physical property Standard Value Unit
Density ASTM D792 1.05 g/cm³
Shrinkage ASTM D955 0.5~0.7 %
Water Absorption 23℃24hr ASTM D570 0.08 %
Melt Index 250℃ 2.16kg ASTM D1238 14 g/10min
Mechanical behavior Standard Value Unit
Tensile Strength Yield 50mm/min 3.2mm ASTM D638 480 kg/cm²
Elongation Break 50mm/min 3.2mm ASTM D638 13 %
Flexural Strength 2.8mm/min 3.2mm ASTM D790 720 kg/cm²
Flexural Modulus 2.8mm/min 3.2mm ASTM D790 23000 kg/cm²
Izod Notch Impact 23℃3.2mm ASTM D256 15 kg-cm/cm
Thermal Standard Value Unit
HDT Unannealed 1.8MPa 6.4mm ASTM D648 80 ℃
Melting Temperature ASTM D3418 223 ℃
Flammability Standard Value Unit
Flame Rating All Color 1.5mm UL94 V-2
Flame Rating All Color 3.0mm UL94 V-2
UL Standard Value Unit
UL FlameRating ALL 1.5mm UL94 V-2
UL FlameRating ALL 3.0mm UL94 V-2
RTI Elec ALL1.5mm UL 746B 60 ℃
RTI Elec ALL3.0mm UL 746B 60 ℃
RTI Imp ALL1.5mm UL 746B 60 ℃
RTI Imp ALL 3.0mm UL 746B 60 ℃
RTI Str ALL 1.5mm UL 746B 60 ℃
RTI Str ALL 3.0mm UL 746B 60 ℃
Injection molding Value Unit
Dry Temperature 80 ℃
Dry Time 4~6 hr
Water Content Control ≤0.02 %
Zonel Temperature 220~230 ℃
Zone2 Temperature 225~235 ℃
Zone3 Temperature 225~235 ℃
Nozzle Temperature 230~245 ℃
Melt Temperature 230~245 ℃
Mould Temperature 40~60 ℃

Application

High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material

High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

 High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic MaterialElectronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

 High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic MaterialMechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter​

High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material

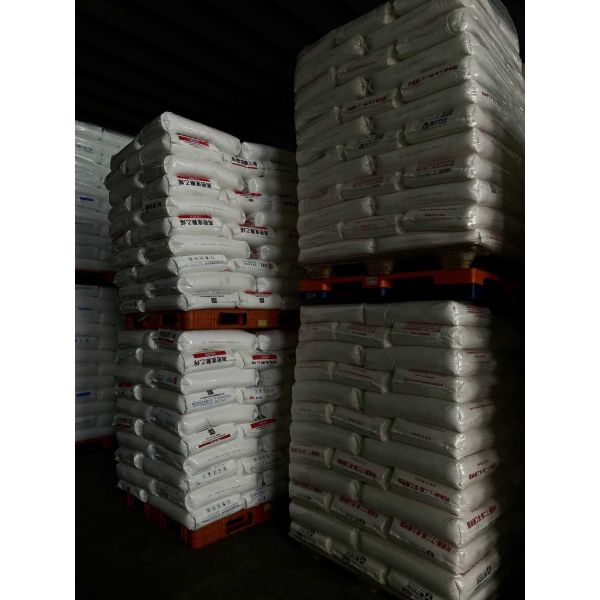

Warehouse:

High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material
High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material High Rigidity Other Plastic Raw Materials Electronic Shell PBT Plastic Material
FAQ
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted
