Specifications
Certification :
RoHs
Place of Origin :
China
MOQ :
100 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 tons one month
Delivery Time :
5-8 days
Packaging Details :
Pack by kraft paper
Type :
Sun Sheets & PC Embossed Sheets
Material :
Polycarbonate
Thickness :
0.8-3mm
Surface :
UV Pretection
Size :
Cusomized
Light Color :
White
Color :
green,blue,opal,Clear,brown or customized
Application :
Indoor/Outdoor
Warranty :
More than 10 years
Weather Resistance :
Yes
After-sale Service :
Online technical support, Other, NONE
Sample :
Freely Provide
Density :
1.2g/Cubic centimeter
Description

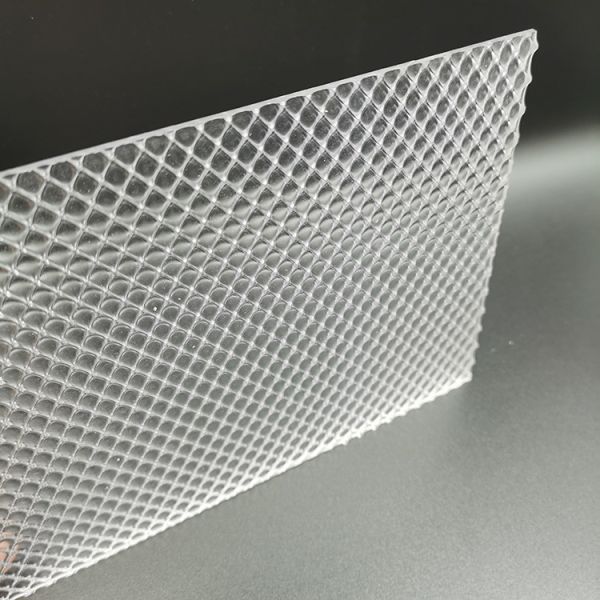

White Customized PC Polycarbonate Diffuser Sheet Lighting Cover

Polycarbonate diffusion sheet is a type of plastic sheet that is designed to diffuse light in a uniform manner. It is made from polycarbonate, which is a durable and transparent thermoplastic material. The diffusion sheet has a textured surface that scatters the light, resulting in a soft and even distribution of light.


Technical information

Material Bayer,zhengfei(zhengfei), Mitsubishi
Width 1220mm,1560mm,1820mm,2100mm/customized
Length No limited
Thickness 1.5-10mm
Color Clear,green,opal,bronze,blue,orange,red/customized
Notes Special color,size can be customized

1) Impact strength: 850J/m. About 200-350 times of common glass.
2) Light weight: About 1/2 times of glass of the same thickness.
3) Light transmission: 80%-92% for different thickness of clear color
4) Specific gravity: 1.2 g/cm3
5) Coefficient of thermal expansion: 0.065 mm/m° C
6) Temperature range: -40° Cto 120° C
7) Heat conductivity: 2.3-3.9 W/m2 º
8) Tensile strength: >=60N/mm2
9) Flexural strength: 100N/mm2
10) Heat deflection temperature 140 ° C
11) Modulus of elasticity: 2, 400mPa
12) Tensile street at break: >=65mPa
13) Elongation at break: >100%
14) Specific heat: 1.16J/kgk
15) Soundproof index: 4mm-27dB,10mm-33dB


The difference between polycarbonate diffuser sheet and other materials

1. Glass: Glass is a common material used in lighting applications, but it is heavy and brittle, making it prone to breakage. Polycarbonate diffusion sheet, on the other hand, is lightweight and highly impact-resistant, making it a safer and more durable option.

2. Acrylic: Acrylic is another material used in lighting applications, but it is less impact-resistant than polycarbonate diffusion sheet. Acrylic is also more prone to scratching, which can affect its light transmission properties over time. Polycarbonate diffusion sheet is more durable and scratch-resistant, making it a better long-term choice.

3. PVC: PVC is a plastic material that is sometimes used in lighting applications, but it is not as durable or impact-resistant as polycarbonate diffusion sheet. PVC is also more prone to yellowing and discoloration over time, which can affect the quality of light it produces. Polycarbonate diffusion sheet is more resistant to discoloration and produces a higher quality of light.

4. Aluminum: Aluminum is a metal material that is sometimes used in lighting fixtures, but it is not a good diffuser of light. Polycarbonate diffusion sheet, with its textured surface, is designed specifically to diffuse light evenly, making it a better choice for creating a soft and uniform glow.

Design selection


1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover

Features

1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover


1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover


1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover


Applications

1). Roofing skylight for office building, department store, hotel, stadium, school, hospital.

2). Soundproof shields on express ways.
3). LED diffused, Advertising lamp boxes, sign board.Telepohne booths.
4). Anti-riot shield, bullet resistant material, Bank ATMs.
5). Agricultural greenhouses, zoos, botanical gardens.
6). Swimming Pools roofing/cover/sheet
7). Lighting for corridors, balcony, passages and subway entries, walkways.
8). Walls, roofs,windows,screens,shower enclosure and other indoor decoration material.
9). Instrument and machine windscreen.




1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover


1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover



Company information


Founded in the 2014,SUZHOU ZHENGFEI BOARD CO.,LTD is a professional enterprise which specializes in manufacture and processing of Polycarbonate sheet.By using fine materials (mainly from Bayer and zhengfei) and introducing advanced co-extrusion production line,we offer superior quality products to customer from all around the world.


1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover


1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover


1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover


1.5-18mm Polycarbonate Light Diffuser Sheet White Customized PC Lighting Cover



Why choose us?

1. 12 years plastic manufacturing and fabrication experience.
2. Advanced technology &equipment to ensure highly quality product.
3. Professional R & D and production teams.
4. Rapid delivery time.
5 .Strict quality Control System.
6. Good reputation, establish long-term trade relationship with customers.
7. Exported to America / UK/Australian /Germany /South Africa /Middle East/etc.
