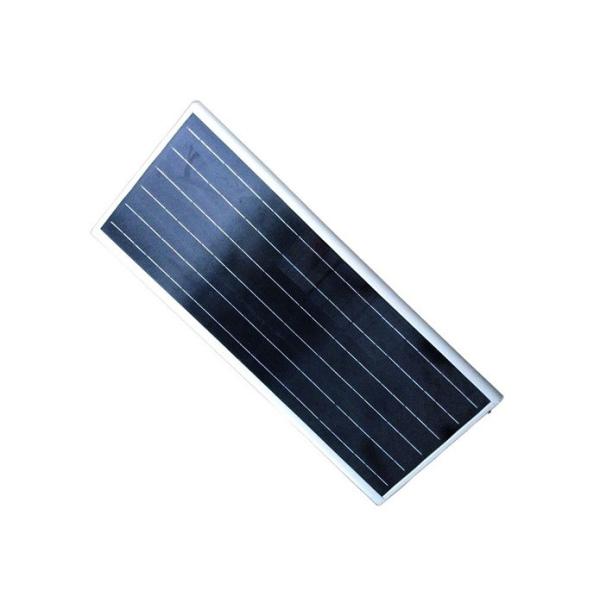

Polycrystalline Silicon Solar Energy And Solar Panels Anodized Aluminum Alloy Frame
Polycrystalline Silicon Solar Energy And Solar Panels Anodized Aluminum Alloy Frame
Specifications
Brand Name :
OLLIN PV
Model Number :
OL-60P-255
Certification :
CE ROSH ISO
Place of Origin :
zhejiang Pr, China
MOQ :
one unit
Price :
Negotiable
Supply Ability :
1500UNITS PER WEEK
Delivery Time :
20DAYS
Packaging Details :
2 PCS PER CARTON OR 25PCS PER PALLET
cell material :
Polycrystalline silicon
cell array :
6*10
cell color :
blue
frame :
anodized aluminum alloy
front sheet :
high transmissions low iron tempered glass
back sheet :
TPE quality plastic
Main market :
Asia Africa Southeast Asia
Junction box :
JB with 0.9m wire and connector
Description

Solar Panel Solar Cell Fish pond system 255W Polycrystalline Solar Panel white frame and sheet

Features:


High conversion efficiency

Low power tolerance of 0~+3%

Low degradation under light exposure

Can withstand high wind-pressure, snow load and extreme temperature

Passing IEC 61215 5400Pa mechanical load test

Quality and Safety:

10-year warranty on product materials and processing technology

Power output warranty: 3 years: 90%, 25 years: 80%

ISO 9001: 2008(Quality Management System) certified factory

Specifications:

OLLIN-240P-260P
Polycrystalline Solar Module
Mechanical Data
Cell type Poly 156mm*156mm
No.of cells 60 in series(6*10)
Dimensions 1640*992*40mm
Weight 18.8kg
Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 240WP 245WP 250WP 255WP 260WP
Open circuit voltage(Voc) 36.3v 36.46v 36.54v 36.88v 36.9V
Max. power voltage(Vmp) 29.64V 29.68V 29.74V 29.86V 29.94V
Short circuit current(Isc) 8.7A 8.8A 8.96A 9.2A 9.35A
Max. power current(Imp) 8.00A 8.17A 8.3A 8.5A 8.66A
A grade power Tolerance ± 3%
Max.system voltage 1000V
Operating temp. —40℃~80℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃

Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.

Polycrystalline Silicon Solar Energy And Solar Panels Anodized Aluminum Alloy Frame

FAQ


1. OLLIN PV Solar Panel Tolerance: Positive power tolerance of 0/+3% .

2. Quality guarantee: every product checked by QC before shipment.

3years warranty period for our solar panel. 25years linear power warranty.

3. Reasonable Prices:we are direct manufacture, Favorable price, Best quality.

4. OEM service: Special discount according to large qty. Tell us your requirement.

5. Responsible after-sales service

6. Aiming to get repeat orders from 80%customer after the trial orders

7. Making progress with you together

8. Packing: Two pieces in one safe carton, we also can accroding to your special

requirement to add extra wood case or on wood pallet.
