Specifications
Brand Name :
OLLIN PV
Model Number :
OL-36P-50
Certification :
CE
Place of Origin :
zhejiang Pr. China
MOQ :
1 piece/unit
Price :
Negotiable
Supply Ability :
2300PCS PER WEEK
Delivery Time :
20DAYS
Packaging Details :
2PC per carton,
Material :
polycrystalline silicon
Color :
BLUE
dimension :
670*540*30mm
Front Glass :
3.2mm high transmissiontempered glass
Frame :
Anodized Aluninium Alloy
Maximum system voltage :
DC1000V
Power tolerance :
±5%
Description

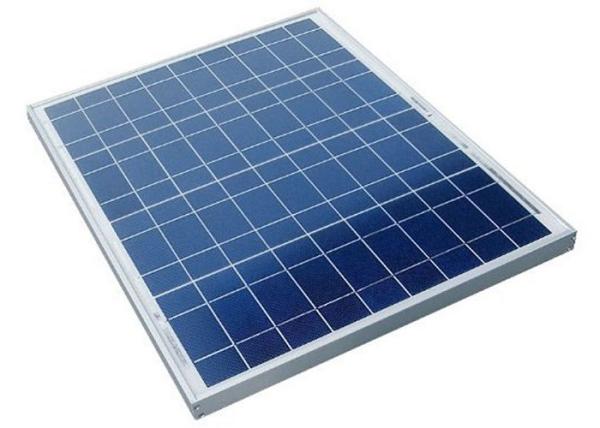

50w 60w 80watt white frame poly Solar module 12V Solar Panel charge for street light


Features

1) Module efficiency : 17%

2) Warranty : 25Years lifetime guarantee, 12years workshop warranty. 90% output in first 10years. 85%

output in next 15years.

3) Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs

reliably

4) Excellent performance under low light conditions

5) Module certified to wind and snow loads

6) Anti-reflective,hydrophobic layer with light absorption and minimal surface dust

7) Rich selection of solar power

Specifications:

OLLIN-40M-60M
Polycrystalline Solar Module
Mechanical Data
Cell type poly
No.of cells 36 in series(4*9)
Dimensions 670*540*30mm
Weight 5kg
Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 40W 50W 120W
Open circuit voltage(Voc) 21.5V 21.5v 21.6V
Max. power voltage(Vmp) 17.46V 17.48V 17.5V
Short circuit current(Isc) 2.52A 3.08A 3.33A
Max. power current(Imp) 2.22A 2.78A 2.67A
A grade power Tolerance ± 3%
Max.system voltage 1000V
Operating temp. —40℃~80℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃


White Frame Polycrystalline Solar Module Dimension 670*540*30mm For Street Light


Applications:

Solar Photovoltaic is the technology by which solar energy is converted into electrical energy and its major

applications in industrial and commercial sectors:

Solar Homes Systems upto 2000 W,

Solar Lighting,

Solar Power Plants from 10 KW to 20 MW, Solar Parks upto 20 MW,

Solar UPS,

Solar Roof Based On Grid

Power Generation,

Solar Traffic Signals Lights,

Power for Remote Terminal Units,

Power for Telecommunication Towers and BSC and MSC,

Building Integrated Photovoltaic System,

Military signaling applications,

Solar water Pumping,

Solar Lighting for Parking lots,

Solar Lighting for Bus Stop Shelters etc.


When you would like a high quality solar panel Renytek have the Monocrystalline modules manufactured

with a strong anodised Aluminium corrosion resistant frame and 5 Metres of Solar Cable.

The long-lasting, high-efficiency solar cells are encapsulated in a strong aluminium frame to give many

years of consistent reliable free energy.

The solar panel is a waterproof design enabling use in all weather conditions.
