5w - 100w Mini Solar Panel Crystalline Silicon Material High Wind Pressure Resistant
5w - 100w Mini Solar Panel Crystalline Silicon Material High Wind Pressure Resistant
5w - 100w Mini Solar Panel Crystalline Silicon Material High Wind Pressure Resistant
5w - 100w Mini Solar Panel Crystalline Silicon Material High Wind Pressure Resistant
Specifications
Brand Name :
OLLIN PV
Model Number :
OEM
Certification :
CE
Place of Origin :
zhejiang PR, CHINA
MOQ :
1 pc
Price :
negotiation
Supply Ability :
800 Piece/Pieces per Week
Delivery Time :
20days
Packaging Details :
carton or as requirment
Material :
crystalline Silicon
Item Type :
solar panel
Input Voltage(V) :
18V
Application :
Outdoor, Road, Garden and Park solar light
Front Glass :
3.2mm High Transmission tempered Glass
Frame :
Anodized Aluninium Alloy
Description

Features


1) Nominal 12v/24v DC for standard output;
2) Outstanding low-light performance;
3) Rugged design to withstands high wind preasure and snow load, easy installaion;
4) Aesthetic appearance;
5) Design to meet unique design of customer;
6) 5-year material and workmanship warranty, 25 year module output warranty;
7) High Efficiency; The modules can withstand high wind-pressure, snow loads and extreme temperatures

ITEM NO 20W/18V
MONO or POLY poly
Maximum power (Wp) 20wp
Maximum power voltage (V) 18
Maximum power current (A) 1.11
Open circuit voltage (V) 21.6
Short circuit current (A) 1.19
Number of cells (Pcs) 36
Size of module (mm) 480*340*23
Brand Name of Solar Cells HT
Maximum system voltage (V) 715
Temperature coefficients of Isc (%) 0.065+/-0.015%/°C
Temperature coefficients of Voc (%) -(2.23+/-0.1)mv/ °C
Temperature coefficients of Pm (%) -(0.5+-0.05)/ °C
Temperature coefficients of Im (%) +0.1/ °C
Temperature coefficients of Vm (%) -0.38/ °C
Temperature Range -40°C~+85°C
Tolerance Wattage (e.g. +/-5%) +/-5%
Surface Maximum Load Capacity 60m/s(200kg/sq.m)
Allowable Hail Load steel ball fall down from 1m height
Weight per piece (kg) 2.2
Length of Cables (mm)
Cell Efficiency (%) more than13%
Module Efficiency (%) more than 8%
Output tolerance (%) +/-5%
Frame (Material, Corners, etc.) Aluminum
Standard Test Conditions AM1.5 100mw/cm2 25°C
Warranty 2 years product warranty and 25years 80% of power
FF (%) 75%
Packing 10PCS/ CTN
Unit Price

Advantages

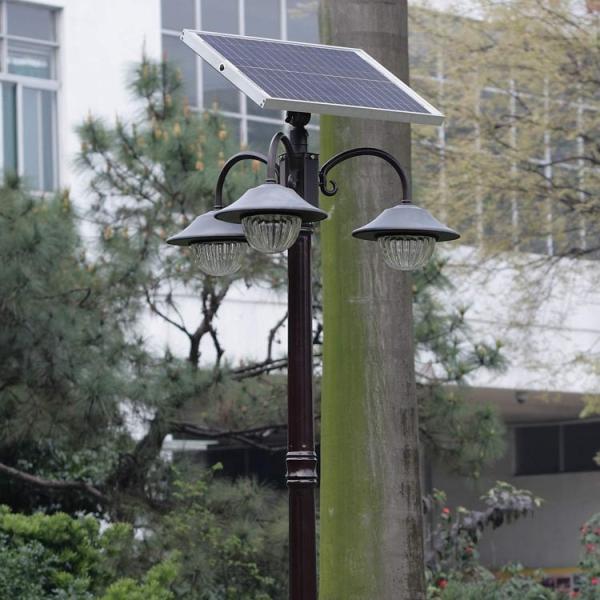

Solar street lights are independent of the utility grid. Hence, the operation costs are minimized.

Solar street lights require much less maintenance compared to conventional street lights.

Since external wires are eliminated, risk of accidents are minimized.

This is a non polluting source of electricity

Separate parts of solar system can be easily carried to the remote areas

It allows the saving of energy and also cost.

Disadvantages

Initial investment is higher compared to conventional street lights.

Risk of theft is higher as equipment costs are comparatively higher.

Snow or dust, combined with moisture can accumulate on horizontal PV-panels and reduce or even stop

energy production.

Rechargeable batteries will need to be replaced several times over the lifetime of the fixtures adding to the

total lifetime cost of the light.

The charge and discharge cycles of the battery is also very important considering the overall cost of the

project.
