Specifications
Brand Name :
OLLIN PV
Model Number :
OL-36M-20
Certification :
CE
Place of Origin :
zhejiang Pr. China
MOQ :
1 piece/unit
Price :
Negotiable
Supply Ability :
4300PCS PER WEEK
Delivery Time :
20DAYS
Packaging Details :
10PC per carton,
Material :
monocrystalline silicon
Color :
black
dimension :
340*240*18mm
Front Glass :
3.2mm high transmissiontempered glass
Frame :
Anodized Aluninium Alloy
connecter :
DC Or Alligator clip
Description

Jinko brand Solar cells 20watt 30watt 40watt mono Black Solar PV Panels used for Solar Traffic Signals Lights

Features

1. High cell's efficiency for long term output stability and reliability

2. Rigorous quality control to meet highest international standards

3. High transmittance,low iron tempered glass cover with enhanced stiffness and impact

resistance

4. Outstanding electrical performance under high temperature and low irradiance ,cloudy

weather conditions

5. Advanced encapsulation material provide efficient protection from the severest environment

conditions

6. EL test and Flash test for finished panel

7. Positive tolerance , 0~5w

Electrical Characteristics

OLLIN-35P-45P
Monocrystalline Solar Module
Mechanical Data
Cell type Monocrystalline
No.of cells 36 in series(4*9)
Dimensions 625x530x25mm
Weight 4kg
Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 35WP 40WP

45WP

Open circuit voltage(Voc) 21.5V 21.5v

21.6V

Max. power voltage(Vmp) 17.46V 17.48V

17.5V

Short circuit current(Isc) 2.48A 2.56A

2.74A

Max. power current(Imp) 2.01A 2.29A

2.58A

A grade power Tolerance ± 3%
Max.system voltage 1000V
Operating temp. —40℃~80℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃

You own the sun. Well, not exactly, but you do have the right to its power. Why not put it

good use? With solar technology, you can harness the sun's energy and turn your rooftop

into a power plant.

About Payment



We provided Trade Assurance service

We also accept payment by T/T; LC, Paypal

We Provide OEM Services

We can do OEM for your brand (print your logo ). And we can make product according to

your design .

The processing method ,the size ,the quality etc ,will all follow your requirement .

We do OEM for a lot of the world's leading brands ,we have rich experience in production.

We have molds in varieties ,and we have strict products quality control system.

We have a strong R&D team, to develop new products according to the sample you provided.

Is solar power difficult to use?


Although the production of solar panels incorporates a high-tech manufacturing process, it is

really very easy to use a photovoltaic system. Solar panels have no moving parts to wear out,

they can be used alone or in combination with other energy sources, and they are silent,

reliable and long lasting.

What can you power with Photovoltaics?

A properly designed photovoltaic system can supply electricity for many applications, from

small remote lighting needs to megawatts of power for large utility companies. An advantage

of photovoltaic power is that it can do anything a traditional power generator can do, only

without consuming pollution-causing fuel, or requiring noisy motors.

What is a PV system?

A PV system consists of all the equipment and materials needed to generate solar energy,

including solar panels (often called modules), a support structure, wiring, an inverter, a meter

and other equipment as required by a specific application. JUST-SOLAR's PV system for

commercial buildings, and ET Solar system for residential uses are examples of complete PV

systems.

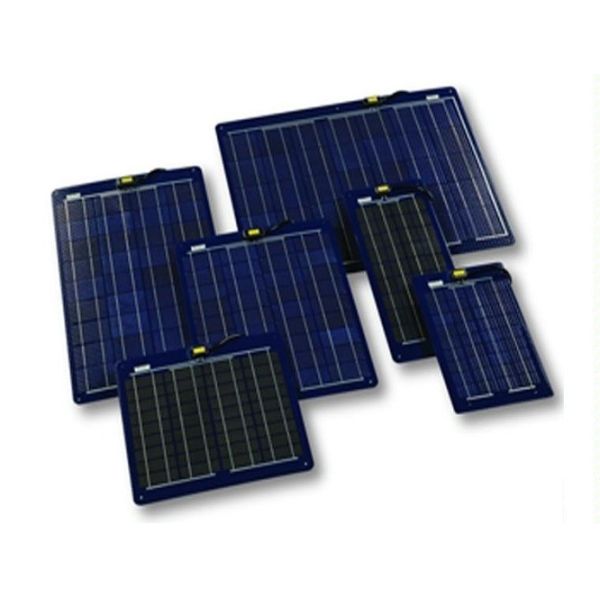

40 Watt Mono Black Solar PV Panels High Transmittance Low Iron Tempered Glass Cover
