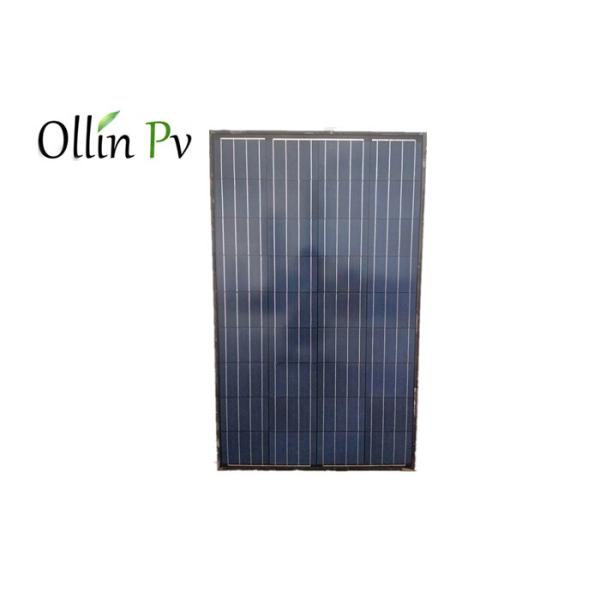

OEM LOGO Photoelectric Solar Panels Corrosion - Resistant Anodized Frame
OEM LOGO Photoelectric Solar Panels Corrosion - Resistant Anodized Frame
Specifications
Brand Name :
OLLIN PV
Model Number :
OLLIN PV-150w
Certification :
CE ROSH ISO
Place of Origin :
zhejiang Pr, China
MOQ :
one unit
Price :
Negotiable
Supply Ability :
1200UNITS PER WEEK
Delivery Time :
20DAYS
Packaging Details :
1 PCS PER CARTON
cell material :
monocrystalline silicon
cell array :
4x9
cell color :
black
frame :
black color anodized aluminum alloy
front sheet :
high transmissions low iron tempered glass
back sheet :
TPE quality plastic
Main market :
Asia Africa Southeast Asia
Junction box :
JB with 0.9m wire and connector
Description

Yingli brand solar cells Black Solar PV Panels with OEM LOGO and Metal bracket

Product Specification



High-efficiency solar cell ensures high performance of solar module and creates more power in peak hours

Anti-reflecting coating and high-transmission rate glass increases the power output and mechanical strength

of solar module

Aluminum frame

Torsion- and corrosion-resistant anodized frame ensures dependable performance, even through harsh

weather conditions

Lightweight and pre-drilled mounting holes for easy installation

Water-resistant junction box

Designed specially to meet customers demands for residential, commercial and industrial use.

High conversion efficiency

Low power tolerance of 0~+3%

Low degradation under light exposure

Can withstand high wind-pressure, snow load and extreme temperature

Passing IEC 61215 2400Pa mechanical load test

Specifications:

Module Type OLPV130W OLPV140W OLPV150W OLPV160W OLPV165W
Maximum power 130 W 140 W 150 W 160 W 165 W
Max power voltage 17.50 V 17.70 V 17.90 V 18.10 V 18.20 V
Max power current 7.43 A 7.92 A 8.38 A 8.84 A 9.06 A
Open circuit voltage 21.50 V 21.70 V 21.90 V 22.10 V 22.30 V
Short circuit current 7.96 A 8.49 A 9.01 A 9.53 A 9.74 A
Module Efficiency 13.13% 14.14% 15.15% 16.16% 16.67%
Power Tolerance -0~+5W -0~+5W -0~+5W -0~+5W -0~+5W
Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Isc +0.049% /℃
Temperature coefficients of Voc -0.340% /℃
Temperature coefficients of Pmax -0.430% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.

OEM LOGO Photoelectric Solar Panels Corrosion - Resistant Anodized Frame

Applications


On-grid residential roof-tops

On-grid commercial/industrial roof-tops

Solar power plants

Off-grid system

Other on-grid applications

FAQ


Q: Are you a manufacturer or a trade dealer?

A: We are manufacturer with our own factory and trading company.

Q: When did your company start to manufacture the products?

A: We started from the year of 2008.

Q: How can I get some samples?

A: You can send email, buy from our online shop or call us for sample order.

Q:.Can I just buy 1pc sample first or small order?

A:Yes,support sample order and small order, especially for new customers.

Q:.How long to make a sample?

A: 7-10days

Q: Is the sample fee refundable or not?

A:Due to the producing cost is high, we need charge sample fee.

Q:What certification do you have?

A:We have got CE, RoHS certification for our products.

Q:Can I put my own logo?

A:Yes, your logo can be engraved, embossed, transfer-printing or lasered etc.

Q:Is the price including duty?

A: This price does not include customs fee, local taxes, or brokerage fee.

Q:How good is your service and after-sales service?

A: We have excellent customer service & technical support &1-year warranty police to meet all your

requirements.

Q: How do your company regard on quality control?

A: Quality is priority. We think highly of quality controlling.
