Water Pump System Round Solar Panel 3.2mm Thickness Low Iron Tempered Glass
Water Pump System Round Solar Panel 3.2mm Thickness Low Iron Tempered Glass
Specifications
Brand Name :
OLLIN PV
Model Number :
OL-36P-80
Certification :
CE ROSH ISO
Place of Origin :
zhejiang Pr, China
MOQ :
one unit
Price :
Negotiable
Supply Ability :
1500UNITS PER WEEK
Delivery Time :
20DAYS
Packaging Details :
0NE PCS PER CARTON
cell material :
Monocrystalline silicon
cell color :
black
front sheet :
high transmissions low iron tempered glass
back sheet :
TPE quality plastic
Main market :
Asia Africa Southeast Asia
Junction box :
JB with 0.9m wire and connector
Description

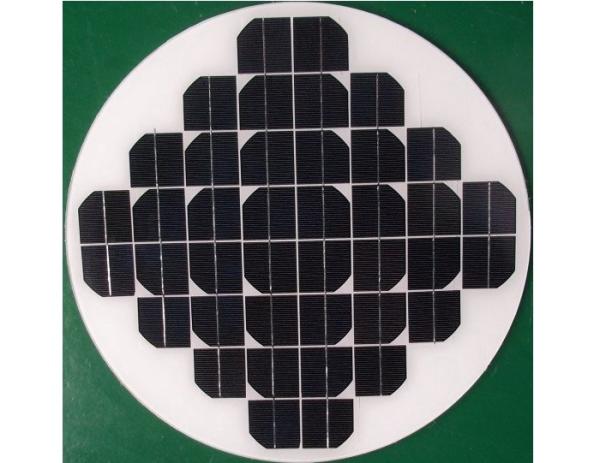

PV Solar Cells 80W round Shape solar module Round Solar Panels DIY design solar power solar water pumping system

Detailed Product Description

  • Item No. 80W
  • Maximum Power (Pm):80W
  • Operating Voltage (Vmp):18V
  • Operating Current (Imp):4.44A
  • Power Tolerance:-5% to +5%
  • Dimension: Diameter:1000mm, thinkness:5.5mm
  • Panel color: White
  • Glass thickness:3.2mm,Low iron tempered glass
  • Type:Monocrystalline silicon solar cell
  • Encapsulation Methods: Glass Lamination Solar panel
  • No frame, with junction box, without solder wire
  • Charger for 12V batteries

Configuration Relationships between solar panel and Batteries
Batteries
Solar Panel
Related Products
1.2V
1.8V~2V
1.5V
2.2V-2.5V
2.4V
3.6V~4V
3.2V
4.5V-5V
3.7V
5.5V-6V
5V
7V-8V
6V
9V
9V
12V-13.5V
12V
17.2~18V
18V
24V
24V
36V
36V
48V
54V solar panel

High efficiency

High module conversion efficiency up to 17% through innovative manufacturing technology.

Manufacturing with CE standard, could widely used in solar power station, building, solar

street lighting, traffic.etc.

Solar panel is made up of high quality solar cell with high effciency and transmission rate,

low iron tempered glass, anti-aging EVA, high flame resistant TPT and anodized aluminum

alloy.

1. With advanced materials and equipment, our modules are designed and manufactured

in consistency with the IEC 61215:1993 standards which can guarantee the excellent

electrical performance and the product life of 25 years.

2. A film of PECVD is coated on the upper surface as anti-reflection measure, featuring deep

blue color.

3. The modules are embedded with a sheet of imported strong transparent glass, two sheets

of long endurance EVA, a high efficiency monocrystalline cells sheet and a sheet of

antihumidity TPT for different weather conditions.

4. High quality anodized aluminum frame is suitable for strong wind resistance and mountain

terrain.

5. A multifunction box ensure safe connection.

6. The exterior design and electrical performance of the module can meet the requirements of

superior quality.
