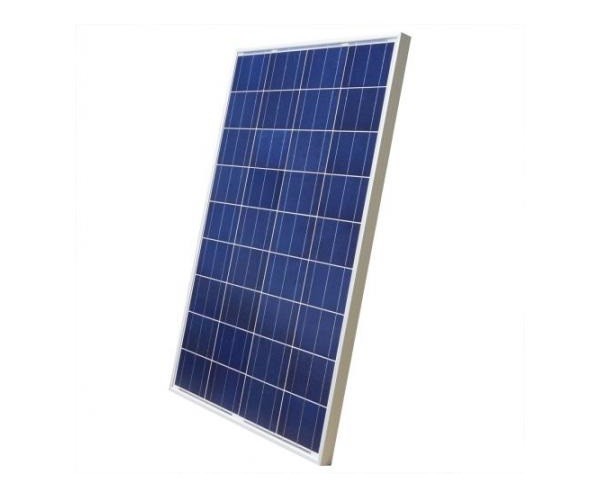

Z Style 12 Volt DC Solar Panel Mounting Kits Blinker Outstanding Low - Light Performance
Z Style 12 Volt DC Solar Panel Mounting Kits Blinker Outstanding Low - Light Performance
Specifications
Brand Name :
OLLIN PV
Model Number :
OL-36P-100
Certification :
CE
Place of Origin :
zhejiang Pr. China
MOQ :
1 piece/unit
Price :
Negotiable
Supply Ability :
2300PCS PER WEEK
Delivery Time :
20DAYS
Packaging Details :
2PC per carton,
Material :
Polycrystalline silicon
Color :
black
dimension :
665*996*35mm
Front Glass :
3.2mm high transmissiontempered glass
Frame :
Anodized Aluninium Alloy
Maximum system voltage :
DC1000V
Power tolerance :
±5%
Description

Polycrystalline Solar module With Z Style Solar Panel Monting Kits blinker with white frame 12V Solar Panel

Features:
1) Nominal 12v/24v DC for standard output;
2) Outstanding low-light performance;
3) Rugged design to withstands high wind preasure and snow load, easy installaion;
4) Aesthetic appearance;
5) Design to meet unique design of customer;
6) 25-year/80% efficiency rate 2-year material and workmanship warranty;
7) High Efficiency;


Specifications:

Specification
Rated power100w
Voc22.41
Vop17.9V
Short circuit current (Isc)6.2A
Working current (Iop)5.59A
Output Tolerance±3%
Temperate coefficient of Isc(010+/- 0.01 )%/ ℃
Temperate coefficient of Voc- (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc-0.47%/℃
Temperature range-40℃to +80℃
FrameHeavy duty aluminum
Kind of glass and its thicknessLow Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage12V
Dimensions (L x W x H)mm665*996*35mm(26.16*39.3*1.37 in)
Weight24lbs(11KG)
Warranty25-year transferable power output warranty: 5-year/95% efficiency rate,

Z Style 12 Volt DC Solar Panel Mounting Kits Blinker Outstanding Low - Light Performance
How much power i will get?
If the 10 watt solar panel received 5 hours per day of full sun, then you would have:

0.64 amps (10W panel) X 5 hrs sun = 3.2 amp - per/day

3.2 X 12V = 38.40 watt - per/day.

Company Profile:
We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience. Our

main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters,

Solar LED lights, and so on.

What we can provide: High quality and very competitive price, fast delivery and best service!

A trustable and reliable supplier for your business. We have already exported our products around the world

includes Russian, Middle East, South American, Southeast Asia and so on.

For any details, please don't hesitate to contact me any time!
