Specifications
Brand Name :
OLLIN PV
Model Number :
OL-72P-80
Certification :
CE ROSH ISO
Place of Origin :
zhejiang Pr, China
MOQ :
one unit
Price :
Negotiable
Supply Ability :
1200UNITS PER WEEK
Delivery Time :
20DAYS
Packaging Details :
CARTON and Nylon bag
cell material :
polycrystalline silicon
cell color :
blue
frame :
anodized aluminum alloy
front sheet :
high transmissions low iron tempered glass
back sheet :
TPE quality plastic
Main market :
Asia Africa Southeast Asia
Junction box :
JB with 0.9m wire and connector
Max. Power: :
60W 80W 120W 180W 240W
Description

Poly 80watt folding solar panel with lock and handle anodized aluminum alloy frame

Core Function


1. DC12V,DC 24V batery automatic adaptation

2. Battery charging temperature compensation function

3. Multiple battery protection function: Reverse connect, overcharge,overdischarge, open circuit,over-

voltage, short circuit, over-current protection

4. Gen 4m electronic fuse double protection

5. Series PWM intelligent three stage charging algorithm

6. Thesolarenergy plate reverse connet, reverse charging protection

7. Three LED indicate the working

8. Double button set operation parameters

9. Waterproof IP67, irrigation glue

Parameters Table

Type Kit Size Folded N.W Specification

Max-Power

Max-Power
Voltage

Max-power
Current

Open-Circuit
Voltage

Short-circuit
Current

Module mm Kg W V A V A
2x40w

765x415x70mm

9.0 80 17.6 4.55 21.10 4.91

Model No. Power Voc Isc Vmp Imp Weight(Kg) Accessories
OL-PV-60W 60W 22.4 3.66 18 3.34 8 1. Battery cable
OL-PV-80W 80W 22.4 4.85 18 4.45 9 2.Anderson Connector
OL-PV-120W 120W 22.4 7.35 18 6.68 16 3. MPPT 10A/15A CONTROLLER
OL-PV-180W 180W 22.4 11.02 18 10.02 18
OL-PV-240W 240W 22.4 14.67 18 13.37 27

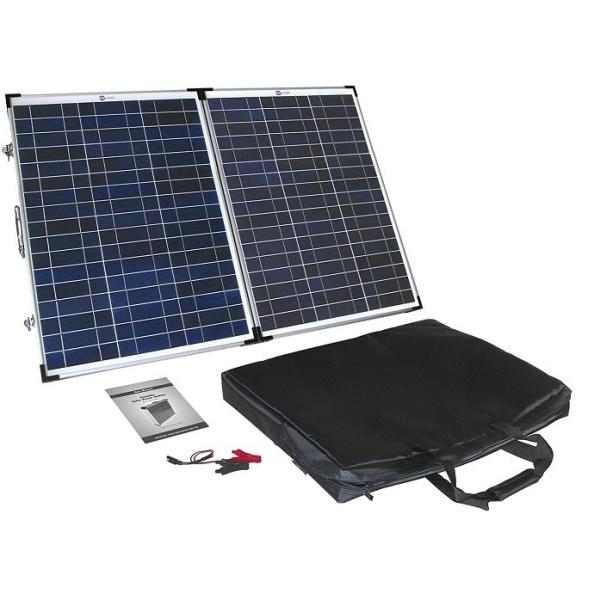

Blue Fold Out Solar Panels , Folding Portable Solar Panels For Camping



Where there is sunlight ,there is power supply!

The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb

output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV,

caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..

The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area

and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.

Solar panels get energy from the sun for people to use.

There are two types of solar panels, those that collect heat (thermal), and those that produce electricity

(photovoltaic). Heat from solar panels is often used for space heating and for hot water.

Solar panels collect renewable energy. In the 20th century some used the heat of the sun to make steam for

a steam engine to turn a generator. Nowadays producing electricity from the sun's light is cheaper. This is a

solid state way of producing electricity, meaning that it has no moving parts. Solar panels are often mounted

on rooftops. Commercial or industrial installations are often on trackers mounted on the ground. The

trackers point the panel towards the sun as the sun moves across the sky. Solar panels are also commonly

used in outer space, where they are one of the few power sources available.

WHY CHOOSE US?

1. Excellent efficiency, Easy Installation & Maintenance


2. Outstanding performance in Low-Light


3. High transparent, Low-Iron, Tempered Glass


4. Ability to withstand High Wind-Pressure and Snow-Load


5. Advanced module sealing technology to eliminate leakage and frame deformation


6. Ability to meet customized customer's specific requirements
