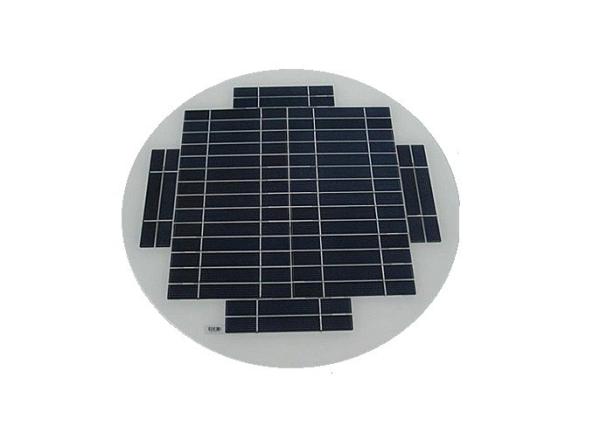

Anti - Reflective Glass Round Solar Panel For Outdoor LED Smart Solar Street Light
Anti - Reflective Glass Round Solar Panel For Outdoor LED Smart Solar Street Light
Specifications
Brand Name :
OLLIN PV
Model Number :
OL-36P-80
Certification :
CE ROSH ISO
Place of Origin :
zhejiang Pr, China
MOQ :
one unit
Price :
Negotiable
Supply Ability :
1500UNITS PER WEEK
Delivery Time :
20DAYS
Packaging Details :
0NE PCS PER CARTON
cell material :
Polycrystalline silicon
cell color :
blue
front sheet :
high transmissions low iron tempered glass
back sheet :
TPE quality plastic
Main market :
Asia Africa Southeast Asia
Junction box :
JB with 0.9m wire and connector
Description

12v 60w 80w Round Solar Panels outdoor led smart solar street light all in one in built solar panels for garden

Features:

1. With advanced materials and equipment, our modules are designed and manufactured in consistency

with the IEC 61215:1993 standards which can guarantee the excellent electrical performance and the

product life of 25 years.

2. A film of PECVD is coated on the upper surface as anti-reflection measure, featuring deep blue color.

3. The modules are embedded with a sheet of imported strong transparent glass, two sheets of long

endurance EVA, a high efficiency monocrystalline cells sheet and a sheet of antihumidity TPT for different

weather conditions.

4. High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain.

5. A multifunction box ensure safe connection.

6. The exterior design and electrical performance of the module can meet the requirements of superior

quality.

Ollin PV25-M 80W Poly solar panel
Solar cell Polycrystalline solar cell 156mm
No.of cells and connections 36pcs
Test condition AM1.5, 1000W/m², 25°C
Tolerance ±5%
Maximum power(Pm) 80(W)
Voltage at max power(Vmp) 18.0(V)
Current at max power(Imp) 4.44(A)
Short circuit current(Isc) 4.78(A)
Open circuit voltage(Voc) 21.6(V)
Dimension of module


Anti - Reflective Glass Round Solar Panel For Outdoor LED Smart Solar Street Light

Solar Cell

> High Efficiency PV Cells

> Appearance Consistency

> Anti-PID

Glass

> Anti-reflective glass

> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function

> Service life is as long as 25 years(30 years optional)

Junction box

> Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety

> IP67 protection level

> Heat dissipation

> Long service life



Why choose US ?

1. OLLIN PV is a professional solar panel manufacturer established in 2008.

2. OLLIN PV offers a wide range of monocyrstalline and polycyrstalline solar panels from 3W to 310W.

Customized solar panels are also acceptable.

3. Our solar panels conform to CE international standards.

4. Each panel is designed to perform under the harshest weather conditions and comes with a

power warranty of 25 years.
