Plain Weave Type Monofilament Polyester Screen Fabric Roll 60 Micron-250 Micron
Plain Weave Type Monofilament Polyester Screen Fabric Roll 60 Micron-250 Micron
Specifications
Brand Name :
kaiheng
Model Number :
DFP
Place of Origin :
Shanghai, China (Mainland)
MOQ :
Unlimited
Price :
Unlimited
Payment Terms :
T/T
Supply Ability :
5000 Meter/Meters per Day
Delivery Time :
5-8 work days
Packaging Details :
Screen printing mesh, packing in carton and plastic bag, and then in plastic woven bag, it also can be packed as customers requirement.
Mesh Count :
8T-165T
Weave Type :
Plain
Printing :
Silk Screen Printing
material :
100% Polyester
Width :
Customized
Monofilament Style :
YES
Color :
Yellow/White
per inch :
20-420 mesh
Characteristics :
Improved fabric strength
opening :
60micron-250micron
Application :
PCB printing, Packing printing, Screen printing,
Description

100% Polyester Monofilament Polyester Mesh Glass Printing Screen Filter screen

1. Product Description

polyester screen printing mesh/polyester screen mesh for printing/bolting cloth/polyester mesh for printing

Polyester Screen Printing Mesh can be devided into three types according to the filament elasticity, Monofilament Polyester Screen Printing Mesh, Low-enlongation Polyester Screen Printing Mesh, Multifilament Polyester Screen Printing Mesh.

Otherwise, Polyster Screen Printing Mesh can also be classified to the color, White Polyester Screen Printing Mesh, Yellow Polyester Screen Printing Mesh, Black Polyester Screen Printing Mesh.

Material: 100% polyester(nylon available if needed)

Weaving: Plain weave (Twill weave available if needed)

Mesh Count: 7T~165T mesh/cm(18mesh~420mesh/inch)

Max. width: 365cm (143inch)

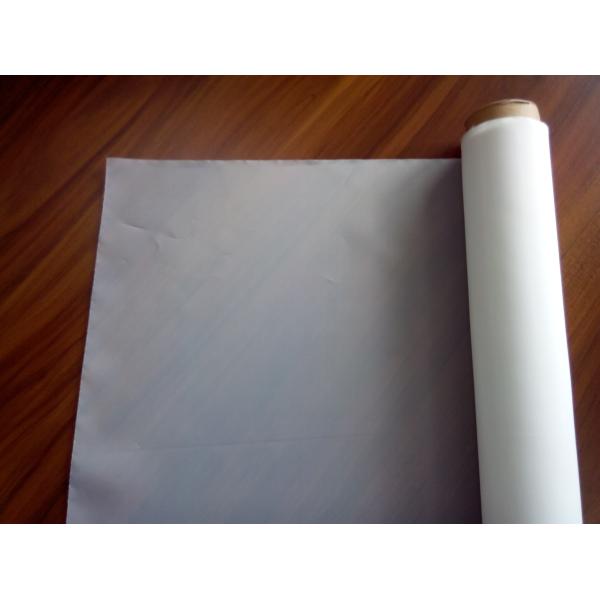

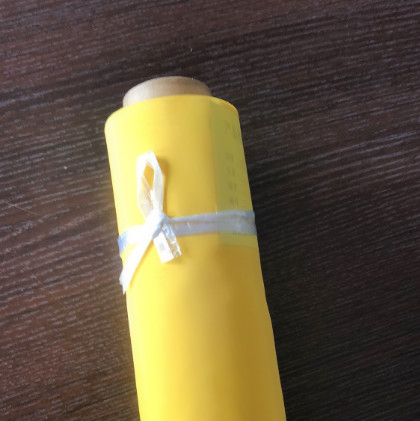

Color: white/yellow/black

Monofilament or Doublefilament

2. Specification
Type Mesh count percm perinch Weaving Diameterμm Opening μm Open Area % Thickness Theoretical lnkVolume)cm2/m2
DPP10 10 25 PW 200 816 65 400 260.0
DPP12 12 30 PW 140 701 70 270 189.0
DPP16 16 40 PW 140 480 61 274 167.5
DPP20 20 50 PW 140 531 42 328 261.0
DPP24 24 60 PW 90 333 62 169 104.8
DPP32 32 80 PW 100 248 47 181 86.1
DPP36 36 90 PW 90 182 46 172 79.1
DPP39 39 100 PW 80 174 47 155 72.8
DPP39 39 100 PW 100 154 37 185 58.5
DPP43 43 110 PW 64 161 49 122 59.8
DPP43 43 110 PW 80 151 43 143 61.5
DPP47 47 120 PW 55 157 55 102 56.1
DPP47 47 120 PW 64 148 49 108 52.9
DPP48 48 120 PW 70 142 45 139 62.6
DPP53 53 135 PW 48 140 55 80 49.5
DPP53 53 135 PW 55 133 60 102 51.0
DPP53 53 135 PW 64 124 44 118 51.9
DPP53 53 135 PW 70 118 39 148 57.7
DPP59 59 150 PW 48 121 51 85 43.4
DPP59 59 150 PW 55 114 48 108 49.7
DPP59 59 150 PW 64 105 39 119 48.4
DPP59 59 150 PW 70 99 34 122 41.5
DPP64 64 160 PW 55 101 42 109 45.8
DPP64 64 160 PW 64 82 38 118 41.3
DPP72 72 180 PW 48 91 43 89 38.3
DPP72 72 180 PW 55 84 37 100 37
DPP77 77 195 PW 48 82 40 89 35.6
DPP77 77 195 PW 55 75 33 108 35.6
DPP80 80 200 PW 48 77 38 89 33.8
DPP80 80 200 PW 55 70 31 110 34.1
DPP90 90 230 PW 40 69 38 86 32.4
DPP90 90 230 PW 48 62 32 92 29.4
DPP100 100 255 PW 40 60 36 72 25.9
DPP110 100 280 PW 40 51 31 79 24.9
DPP120 120 300 PW 34 49 35 71 24.8
DPP120 120 300 PW 40 43 27 72 19.4
DPP140 140 350 PW 31 42 34 61 20.7
DPP140 140 350 PW 34 38 28 67 18.8
DPP150 150 380 PW 31 37 30 60 18.8
DPP150 150 380 PW 34 33 24 62 14.9
DPP165 165 420 PW 31 30 25 56 14.0
DPP165 165 420 PW 27 34 22 52 18.0


3. Application

Plastic Screen Printing
Glass Screen Printing
Ceramic Screen Printing
Stained Paper Screen Printing
Solar Photovoltaic Printing
PCB Circuit Board Printing
Touch Screen Printing
LGP Screen Printing
Fashion Textile Printing
CD Printing
Advertisement Printing

4. Feature

Premium Quality

100% Polyester Monofilament Mesh

Low Elongation

Excellent Tear Resistance

Very Good Dimensional Stability

Faster tensioning without damage to the threads

Higher tension threshold and breaking point

Improved registration due to stable tension
