60 Micron Opening Polyester Screen Printing Mesh Fabric For CD/DVD Printing
60 Micron Opening Polyester Screen Printing Mesh Fabric For CD/DVD Printing
60 Micron Opening Polyester Screen Printing Mesh Fabric For CD/DVD Printing
60 Micron Opening Polyester Screen Printing Mesh Fabric For CD/DVD Printing
60 Micron Opening Polyester Screen Printing Mesh Fabric For CD/DVD Printing
60 Micron Opening Polyester Screen Printing Mesh Fabric For CD/DVD Printing
60 Micron Opening Polyester Screen Printing Mesh Fabric For CD/DVD Printing
60 Micron Opening Polyester Screen Printing Mesh Fabric For CD/DVD Printing
Specifications
Brand Name :
kaiheng
Model Number :
DPP
Place of Origin :
Shanghai, China (Mainland)
MOQ :
Unlimited
Price :
Unlimited
Payment Terms :
T/T
Supply Ability :
5000 Meter/Meters per Day
Delivery Time :
5-8 work days
Packaging Details :

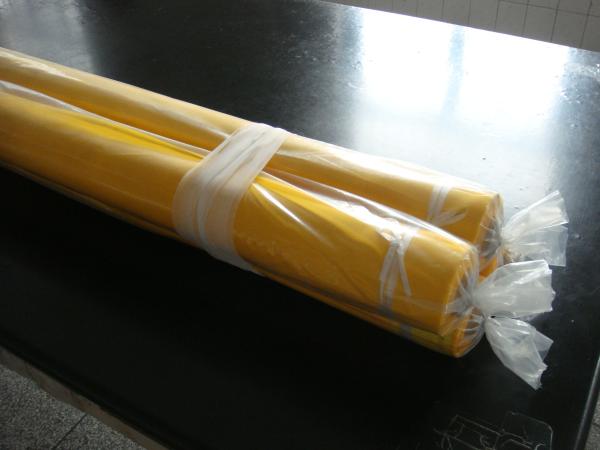

Screen printing mesh, packing in carton and plastic bag, and then in plastic woven bag, it also can be packed as customers requirement.
Mesh Count :
100T
Weave Type :
Plain
Printing :
Silk Screen Printing
material :
100% Polyester
Width :
Customized
Color :
Yellow/white
Advantages :
High Strength, low elongation
Opening :
60micron
Description

100% Polyester Polyester Screen Printing Mesh Printing screen Filter screen Yellow/white

Description of polyester screen printing mesh

Material: 100% polyester(nylon available if needed)

Weaving: Plain weave (Twill weave available if needed)

Mesh Count: 7T~165T mesh/cm(18mesh~420mesh/inch)

Max. width: 365cm (143inch)

Color: white/yellow/black

Monofilament or Doublefilament

Features of polyester screen printing mesh

Good solvent resistance

Waterproof.

Long service life.

High temperature resistance.the meltting-point is 220degree.and the highest use temperature is 150degree.

Specification of polyester screen printing mesh

Type Mesh count percm perinch Weaving Diameterμm Opening μm Open Area % Thickness Theoretical lnkVolume)cm2/m2
DPP10 10 25 PW 200 816 65 400 260.0
DPP12 12 30 PW 140 701 70 270 189.0
DPP16 16 40 PW 140 480 61 274 167.5
DPP20 20 50 PW 140 531 42 328 261.0
DPP24 24 60 PW 90 333 62 169 104.8
DPP32 32 80 PW 100 248 47 181 86.1
DPP36 36 90 PW 90 182 46 172 79.1
DPP39 39 100 PW 80 174 47 155 72.8
DPP39 39 100 PW 100 154 37 185 58.5
DPP43 43 110 PW 64 161 49 122 59.8
DPP43 43 110 PW 80 151 43 143 61.5
DPP47 47 120 PW 55 157 55 102 56.1
DPP47 47 120 PW 64 148 49 108 52.9
DPP48 48 120 PW 70 142 45 139 62.6
DPP53 53 135 PW 48 140 55 80 49.5
DPP53 53 135 PW 55 133 60 102 51.0
DPP53 53 135 PW 64 124 44 118 51.9
DPP53 53 135 PW 70 118 39 148 57.7
DPP59 59 150 PW 48 121 51 85 43.4
DPP59 59 150 PW 55 114 48 108 49.7
DPP59 59 150 PW 64 105 39 119 48.4
DPP59 59 150 PW 70 99 34 122 41.5
DPP64 64 160 PW 55 101 42 109 45.8
DPP64 64 160 PW 64 82 38 118 41.3
DPP72 72 180 PW 48 91 43 89 38.3
DPP72 72 180 PW 55 84 37 100 37
DPP77 77 195 PW 48 82 40 89 35.6
DPP77 77 195 PW 55 75 33 108 35.6
DPP80 80 200 PW 48 77 38 89 33.8
DPP80 80 200 PW 55 70 31 110 34.1
DPP90 90 230 PW 40 69 38 86 32.4
DPP90 90 230 PW 48 62 32 92 29.4
DPP100 100 255 PW 40 60 36 72 25.9
DPP110 100 280 PW 40 51 31 79 24.9
DPP120 120 300 PW 34 49 35 71 24.8
DPP120 120 300 PW 40 43 27 72 19.4
DPP140 140 350 PW 31 42 34 61 20.7
DPP140 140 350 PW 34 38 28 67 18.8
DPP150 150 380 PW 31 37 30 60 18.8
DPP150 150 380 PW 34 33 24 62 14.9
DPP165 165 420 PW 31 30 25 56 14.0
DPP165 165 420 PW 27 34 22 52 18.0


Application of polyester screen printing mesh

Printing mesh for printed circuit boards

Printing mesh for Textile

Printing mesh for CDs/DVDs

Printing mesh for glass

Pharmacy gladd appliance printing

Home appliance printing

Automotive glass printing

Printing mesh for ceramics.

Advantages of polyester screen printing mesh

Low Elongation,High tension
Excellent tear and acid resistance
Very good dimensional stability
Faster tensioning without damage to the threads.
