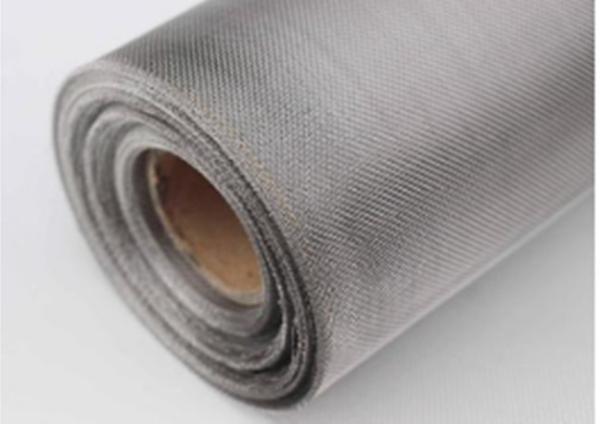

AISI Standard 304 Stainless Steel Wire Mesh Dutch Woven 400 Micron For Filter
AISI Standard 304 Stainless Steel Wire Mesh Dutch Woven 400 Micron For Filter
Specifications
Brand Name :
KLD
Model Number :
KLD005
Place of Origin :
HEBEI
MOQ :
1roll
Price :
Usd1-50/sqm
Payment Terms :
L/C, T/T
Supply Ability :
10000sqm/week
Delivery Time :
7day-30days
Packaging Details :
Wood carton
Material :
Stainless Steel Wire
Type :
Weave Wire Mesh
Wire Dia :
0.019-2.32mm
Weave Style :
Dutch Weave
Mesh Count :
2-650mes
Width :
0.5-3m or at your request
Length :
At your request
Feature :
Anti-corrosion&alkail&acid
Description

AISI Standard 304 Stainless Steel Wire Mesh Dutch Woven 400 Micron For Filter

1. The plain weave dutch mesh size ranges from 7x40 mesh to 100x1200 mesh.

2. Size and shape: roll shape (width 0.9m / 1m / 1,22m / 1.5m / 1.8m / 2m or at you reques), and can be made into square, round and other shapes.

3. Length:10m / 30m or at you request.

4. Warp size: 7 - 118 mesh, weft size: 40 - 1200 mesh.

5. Properties: acid and alkali resistance, high temperature resistance, tensile resistance, wear resistance.

6. Features: Precision mesh structure, uniform corrosion resistance, good durability, no deformation, smooth surface, high temperature resistance, low temperature resistance, high load strength

7. Purpose: Used for sieving and filtering in acid and alkali enviorment

PLAIN WEAVE
MESH(INCH) WIRE DIA.(mm) APERTURE(mm) MATERIAL(AISI)
2 1.800 10.900 304/316
2 1.500 11.200 304/316
3 1.500 6.960 304/316
3 1.200 7.260 304/316
4 1.200 5.150 304/316
4 1.000 5.350 304/316
5 1.000 4.080 304/316
5 0.900 4.180 304/316
6 1.000 3.233 304/316
6 0.800 3.433 304/316
7 0.800 2.828 304/316
7 0.700 2.928 304/316
8 0.800 2.375 304/316
8 0.600 2.575 304/316
10 0.600 1.940 304/316
10 0.550 1.990 304/316
12 0.600 1.516 304/316
12 0.550 1.566 304/316
12 0.500 1.616 304/316
14 0.550 1.262

304/316
14 0.500 1.312 304/316
14 0.450 1.362 304/316
16 0.500 1.088 304/316
16 0.450 1.138 304/316
18 0.500 0.910 304/316
18 0.450 0.960 304/316
18 0.400 1.010 304/316
20 0.500 0.770 304/316
20 0.450 0.820

304/316
30 0.350 0.496 304/316
30 0.300 0.548 304/316
30 0.250 0.596 304/316
35 0.300 0.425 304/316
35 0.250 0.475 304/316
35 0.230 0.495 304/316
40 0.250 0.385 304/316
40 0.200 0.435 304/316
40 0.180 0.455 304/316
50 0.220 0.288 304/316
50 0.200 0.308 304/316
50 0.180 0.328 304/316
60 0.190 0.233 304/316
60 0.180 0.243 304/316
60 0.160 0.263 304/316
70 0.140 0.223 304/316
70 0.120 0.243 304/316
80 0.140 0.178 304/316
80 0.120 0.198 304/316
90 0.110 0.172 304/316
90 0.100 0.182 304/316
100 0.110 0.144 304/316
100 0.100 0.154 304/316
120 0.080 0.132 304/316
150 0.063 0.106 304/316
165 0.060 0094 304/316
180 0.053 0.088 304/316
200 0.053 0.074 304/316

TWILL WEAVE
MESH(INCH) WIRE DIA(mm) APERTURE(mm) MATERIAL(AISI)
250 0.040 0.061 316
300 0.040 0.045 316
325 0.035 0.038 316
400 0.030 0.034 316
450 0.028 0.028 316
500 0.025 0.026 316

DUTCH WEAVE
MESH(INCH) WIRE DIA(mm) MATERIAL(AISI)
12x64 0.58x0.40 304/316
14x88 0.50x0.33 304/316
24x110 0.35x0.25 304/316
30x150 0.23x0.18 304/316
50x250 0.14x0.11 304/316
80x700 0.10x0.08 304/316
165x800 0.071x0.04 304/316
1651400 0.06x0.04 304/316
200x1800 0.05x0.032 304/316
325x2300 0.035x0.025 304/316
400x2800 0.030x0.020 304/316
